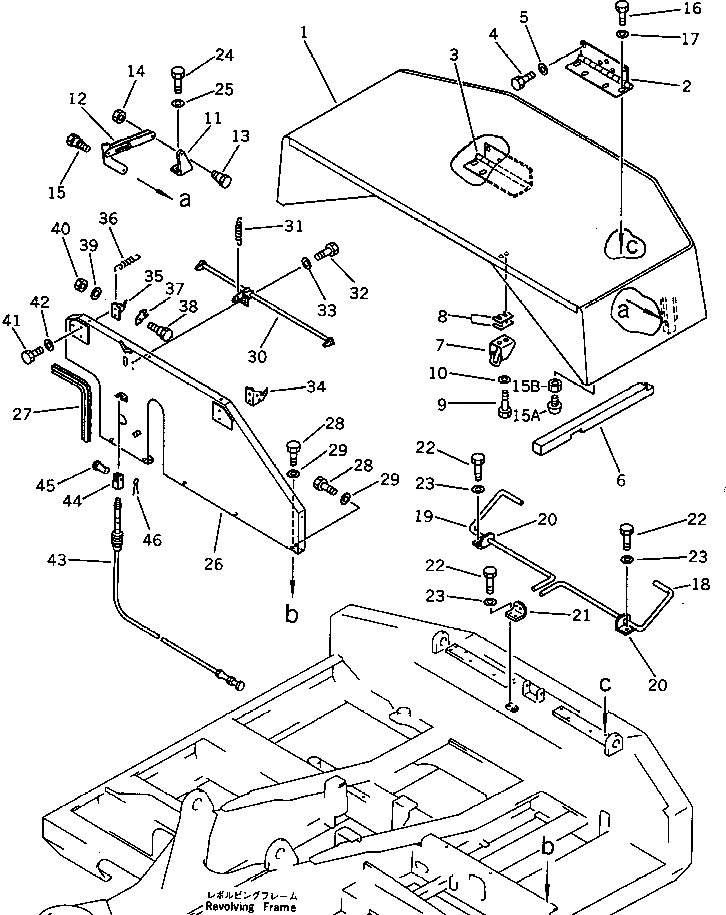

Запчасти Komatsu PC100U-3 MACHINERY ОБСТАНОВКА (/)(№7-9) ЧАСТИ КОРПУСА

|1

203-54-00480

MACHINE CAB ASS'Y

|1

203-54-00312

MACHINE CAB ASS'Y

1

HOOD

|1

HOOD

2

203-54-44950

HINGE,L.H.

3

203-54-44960

HINGE,R.H.

4

01010-51020

BOLT

5

01643-31032

WASHER

6

203-54-42861

SEAT

|6

203-54-42860

SHEET

7

203-54-42350

BRACKET

8

203-54-44940

PLATE

9

01010-51025

BOLT

10

01643-31032

WASHER

11

203-54-42242

BRACKET

12

20R-54-21430

STAY

13

20R-54-21440

BOLT

14

01580-11008

NUT

15

20R-54-21450

BOLT

15A

201-54-21360

CUSHION

15B

01580-10504

NUT

16

01010-51020

BOLT

17

01643-51032

WASHER

18

203-54-42570

BAR,TORSION¤ L.H.

19

203-54-42580

BAR,TORSION¤ R.H.

20

203-54-42270

PLATE

21

203-54-42280

PLATE

22

01010-51025

BOLT

23

01643-31032

WASHER

24

01010-51025

BOLT

25

01643-31032

WASHER

26

202-54-58160

COVER

27

203-54-42840

TRIM

28

01010-51020

BOLT

29

01643-31032

WASHER

30

203-54-42331

LEVER

31

203-54-42660

SPRING

32

01010-51020

BOLT

33

01643-31032

WASHER

34

203-54-42290

BRACKET,L.H.

35

203-54-42310

BRACKET,R.H.

36

203-54-42340

SPRING

37

203-54-42320

LEVER

38

20T-54-26310

BOLT

39

01643-31232

WASHER

40

01580-11210

NUT

41

01010-51020

BOLT

42

01643-31032

WASHER

43

203-54-42561

CABLE

44

04210-20500

YOKE

45

04205-10514

PIN

46

04050-11210

PIN,COTTER
