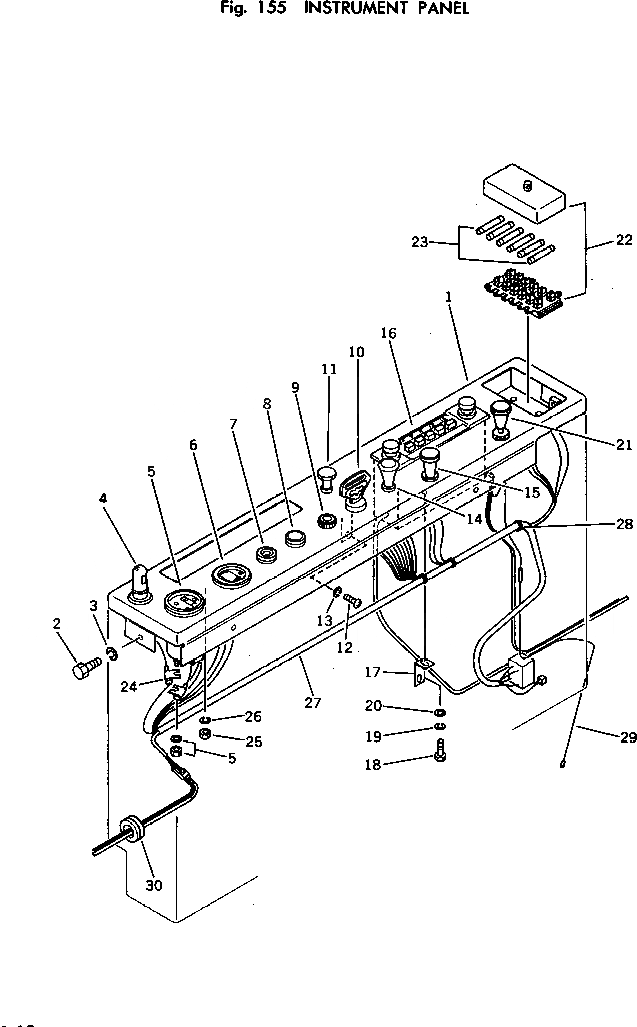

Запчасти Komatsu PC100U-2 ПАНЕЛЬ ПРИБОРОВ КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

202-06-48110

PANEL

2

01010-50816

BOLT

3

01602-20825

WASHER

4

205-06-51320

LAMP

|4

205-06-51330

BULB

5

08687-22402

METER,SERVICE

6

203-06-21131

GAUGE,WATER TEMPERATURE

7

125-06-22210

LAMP,OIL PRESSURE

|7

08111-02430

BULB¤ 3W

8

125-06-22220

LAMP,CHARGE

|8

08147-22400

LAMP

9

600-815-2371

SIGNAL,HEATER

10

201-06-21510

SWITCH,STARTING

11

195-822-6150

LIGHTER,CIGARETTE

12

01220-40410

SCREW

13

01601-20410

WASHER

14

08061-60010

SWITCH,LAMP

15

08183-00000

SWITCH,WIPER

16

205-06-62310

RADIO

17

201-06-21261

PLATE

18

01220-40510

SCREW

19

01601-20513

WASHER

20

01641-20508

WASHER

21

09481-02400

SWITCH,HEATER

22

08043-16000

BOX,FUSE

23

08040-01000

FUSE¤ 10A

|23

08040-02000

FUSE¤ 20A

|23

08040-03000

FUSE¤ 30A

|23

08040-04000

FUSE¤ 40A

24

205-06-51290

CONDENSER

25

01580-10605

NUT

26

01602-20619

WASHER

27

202-06-48120

WIRE ASS'Y

28

08034-00310

BAND

29

202-06-48180

WIRE

|29

201-06-21270

WIRE

30

08037-02512

GROMMET
