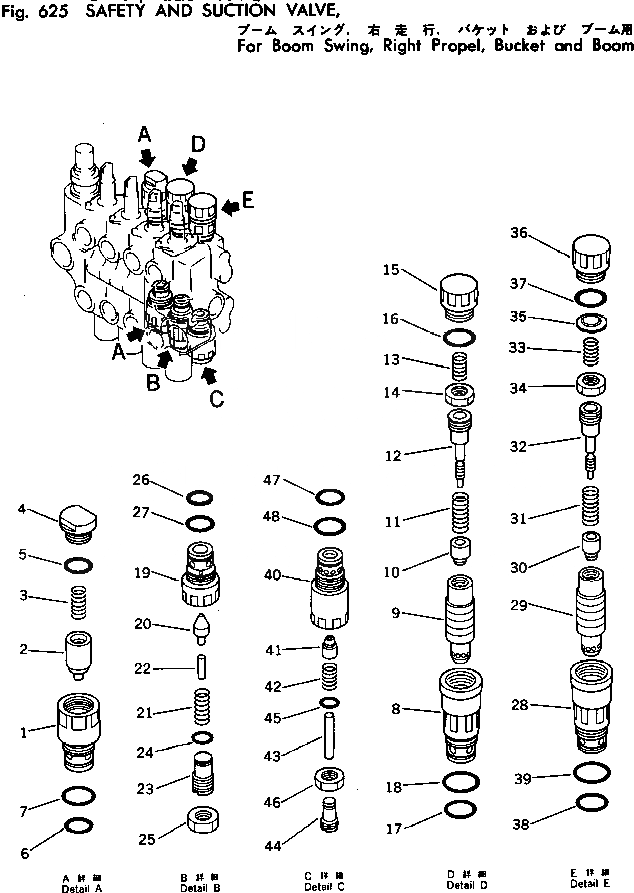

Запчасти Komatsu PC100U-2 БЕЗОПАСН. И ВСАСЫВ. КЛАПАН¤ ДЛЯ СТРЕЛЫ ПОВОРОТН.¤ ПРАВ. PКАНАТL¤ КОВШ И СТРЕЛА УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-84-45001

VALVE ASS'Y

|1

700-80-75000

VALVE ASS'Y,SUCTION

1

SLEEVE

2

VALVE

3

SPRING

4

PLUG

5

O-RING

6

700-80-61260

O-RING

7

07002-03034

O-RING

|8

700-80-66002

VALVE ASS'Y,SUCTION AND SAFETY

8

SLEEVE

9

VALVE

10

POPPET

11

SPRING

12

PISTON

13

SPRING

14

NUT

15

PLUG

16

O-RING

17

700-80-61260

O-RING

18

07002-03034

O-RING

|19

700-80-72000

VALVE ASS'Y,SAFETY

19

SLEEVE

20

POPPET

21

SPRING

22

STOPPER

23

PLUG

24

O-RING

25

NUT

26

700-80-61260

O-RING

27

07002-03034

O-RING

|28

700-80-79000

VALVE ASS'Y,SUCTION AND SAFETY

28

SLEEVE

29

VALVE

30

POPPET

31

SPRING

32

PISTON

33

SPRING

34

NUT

35

SPACER

36

PLUG

37

O-RING

38

700-80-61260

O-RING

39

07002-03034

O-RING

|40

700-80-73000

VALVE ASS'Y,SAFETY

40

SLEEVE

41

POPPET

42

SPRING

43

PISTON

44

SCREW

45

O-RING

46

NUT

47

700-80-61260

O-RING

48

07002-03034

O-RING
