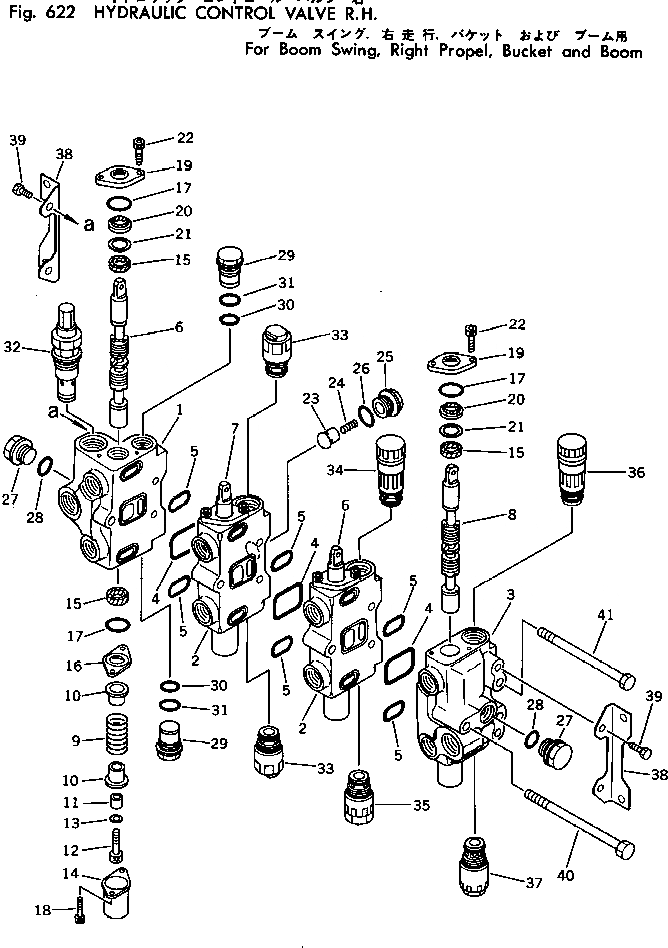

Запчасти Komatsu PC100U-2 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН ПРАВ.¤ ДЛЯ СТРЕЛЫ ПОВОРОТН. ПРАВ. PКАНАТL¤ КОВШ И СТРЕЛА УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-84-45001

VALVE ASS'Y

1

BODY

2

BLOCK

3

COVER

4

07000-13050

O-RING

5

07000-03030

O-RING

6

SPOOL,BOOM SWING¤ BUCKET

7

SPOOL,RIGHT-PROPEL

8

SPOOL,BOOM

9

700-84-11650

SPRING

10

700-84-11630

RETAINER

11

700-84-11640

COLLAR

12

01252-30830

BOLT

13

01643-30823

WASHER

14

700-84-11390

COVER

15

700-84-11232

PACKING

16

700-84-11620

PLATE

17

700-84-11240

O-RING

18

01252-30625

BOLT

19

700-84-11310

PLATE

20

700-84-11820

SEAL

21

700-84-11290

COLLAR

22

01252-30620

BOLT

23

700-42-31460

VALVE

24

700-42-31470

SPRING

25

700-84-11320

PLUG

26

07002-13034

O-RING

27

700-22-11370

PLUG

28

07002-12434

O-RING

29

700-84-11340

PLUG

30

07002-03034

O-RING

31

700-80-61260

O-RING

32

700-82-51000

VALVE ASS'Y,RELIEF

33

700-80-75000

VALVE ASS'Y,SUCTION

34

700-80-66002

VALVE ASS'Y,SUCTION AND RELIEF

35

700-80-72000

VALVE ASS'Y,RELIEF

36

700-80-79000

VALVE ASS'Y,SUCTION AND RELIEF

37

700-80-73000

VALVE ASS'Y,SAFETY

38

700-84-11330

BRACKET

39

01010-51020

BOLT

40

700-84-11182

BOLT

41

700-84-11172

BOLT
