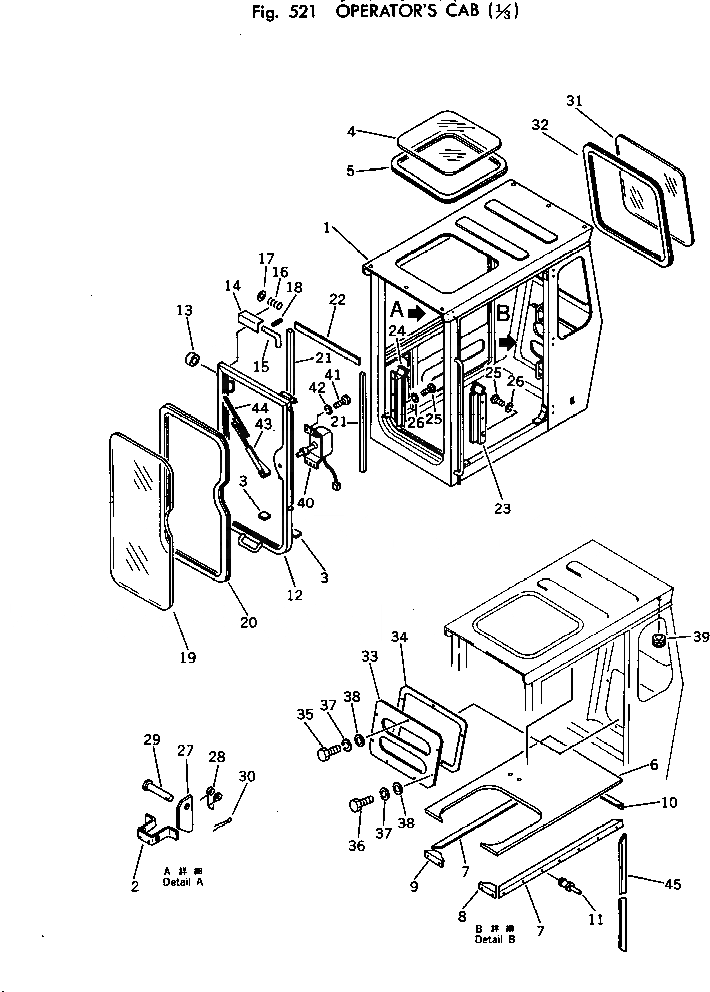

Запчасти Komatsu PC100U-2 КАБИНА (/) ОСНОВНАЯ РАМА И КАБИНА

|$0

202-54-00601

OPERATOR'S CAB ASS'Y

|$1

202-54-00600

OPERATOR'S CAB ASS'Y

1

202-54-48181

CAB ASS'Y

2

201-54-22920

BRACKET (WELDED)

3

201-54-22451

SEAT

4

201-54-22181

GLASS

5

09410-00200

STRIP,WEATHER

6

201-54-22510

LEATHER

7

201-54-22550

PLATE

8

201-54-22520

PLATE

9

201-54-22530

PLATE

10

201-54-22540

PLATE

11

201-54-22560

RIVET

|$13

201-54-00210

FRONT DOOR ASS'Y

|$14

201-54-00142

FRONT DOOR ASS'Y

12

201-54-22573

DOOR

12

201-54-22572

DOOR

13

205-54-66240

ROLLER

|$18

201-54-22580

LOCK ASS'Y,L.H.

|$19

201-54-22870

LOCK ASS'Y,R.H.

14

201-54-22590

BRACKET,L.H. (WELDED)

14

201-54-22860

BRACKET,R.H. (WELDED)

15

201-54-22610

ROD

16

154-54-22510

SPRING

17

01641-21016

WASHER

18

04025-00320

PIN

19

201-54-22640

GLASS

20

09410-00333

STRIP,WEATHER

21

201-54-22630

SEAL

22

201-54-22850

SEAT

23

201-54-22422

COVER

23

201-54-22421

COVER

24

201-54-22441

COVER

25

01370-00510

SCREW

26

01611-05063

WASHER

27

201-54-22930

LEVER

28

201-54-22960

SPRING

29

135-43-16460

PIN

30

04050-03015

PIN

31

201-54-22210

GLASS

32

09410-00260

STRIP,WEATHER

33

202-54-48110

COVER

34

201-54-22491

SEAT

35

01010-31020

BOLT

36

01010-31035

BOLT

37

01602-01030

WASHER

38

01643-31032

WASHER

39

201-54-22890

GROMMET

40

08180-02410

MOTOR ASS'Y,WIPER

41

01010-50612

BOLT

42

01602-20619

WASHER

43

08184-20400

ARM,WIPER

44

08185-00400

BLADE,WIPER

45

201-54-27340

SEAL
