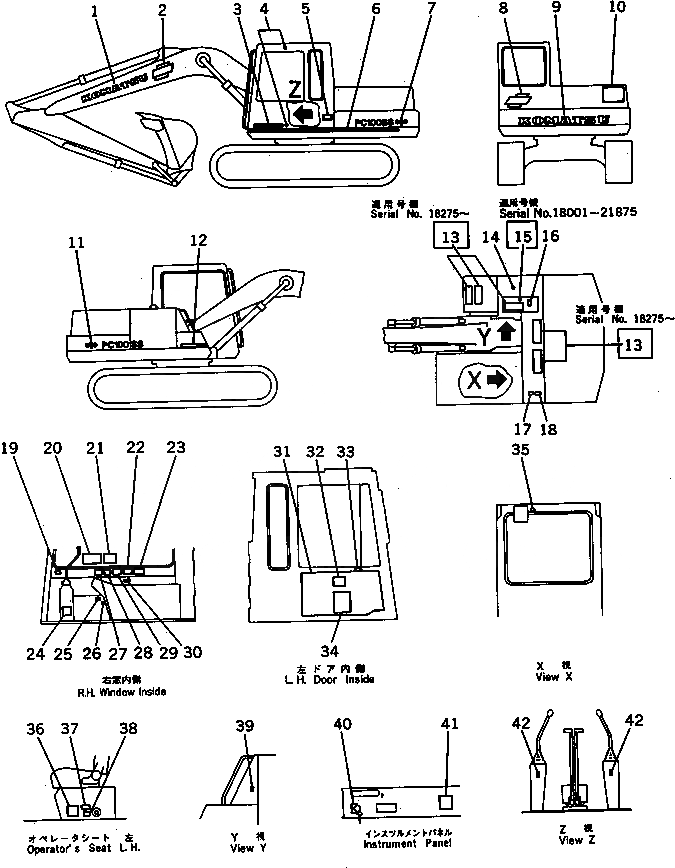

Запчасти Komatsu PC100SS-3 МАРКИРОВКА (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
1
09690-41250
PLATE¤ MARK,KOMATSU
2
203-00-42130
PLATE¤ MARK
3
09690-50500
PLATE¤ MARK,KOMATSU
4
205-00-63770
PLATE
5
09602-01643
PLATE¤ NAME,(LIMITED SUPPLY)
|5
01220-60408
SCREW
|5
01601-20410
WASHER,SPRING
6
203-00-41140
PLATE¤ STRIPE,STRIPE
7
202-00-52111
PLATE¤ MARK,PC100SS L.H.
8
203-00-42130
PLATE¤ MARK
9
203-00-41131
PLATE¤ MARK,KOMATSU
10
09133-00100
PLATE¤ SAFETY,KEEP OUT OF TURNING AREA
11
202-00-52121
PLATE¤ SAFETY,PC100SS R.H.
12
09690-50500
PLATE¤ MARK,KOMATSU
13
154-54-23260
SEAT,NONSKID
14
09652-01121
PLATE¤ CAUTION,FUEL
|14
09669-00002
PLATE¤ CAUTION,FUEL
15
09669-00003
PLATE¤ CAUTION,HYDRAULIC OIL TANK
16
09653-00110
PLATE¤ SAFETY,HYDRAULIC TANK CAP
|16
09653-00100
PLATE¤ SAFETY,HYDRAULIC TANK CAP
17
09668-00100
PLATE¤ SAFETY,RADIATOR CAP
18
09650-01103
PLATE¤ INSTRUCTION,RADIATOR
19
205-00-52192
PLATE¤ CAUTION
20
205-00-71291
PLATE¤ OPERATING
|20
205-00-71290
PLATE¤ OPERATING
21
205-00-71350
PLATE¤ OPERATING
22
09649-00101
PLATE¤ INSTRUCTION
23
205-00-62540
PLATE¤ CAUTION
24
203-00-31320
PLATE¤ CAUTION
25
09131-00100
PLATE¤ SAFETY,SWING LOCK LEVER
26
09685-00002
PLATE¤ OPERATING,SWING LOCK LEVER
27
205-00-63250
PLATE¤ CAUTION
28
09651-00100
PLATE¤ SAFETY,BEFORE OPERATING
29
09173-00100
PLATE¤ SAFETY,INSPECTION AND MAINTENANCE
30
203-00-31330
PLATE¤ OPERATING
31
203-54-41453
COVER
|31
203-54-41452
COVER
|31
203-54-41451
COVER
32
205-00-71310
PLATE¤ CAUTION
33
205-00-71340
PLATE¤ OPERATING,DOOR LOCK
34
203-00-41151
CHART¤ OIL
|34
203-00-41150
CHART¤ OIL
35
205-00-63230
PLATE¤ CAUTION
36
202-00-51131
PLATE¤ DATA
|36
202-00-51130
PLATE¤ DATA
37
09667-00100
PLATE¤ SAFETY
38
203-00-41180
PLATE¤ OPERATING
39
203-00-31120
PLATE¤ INSTRUCTION,HYDRAULIC OIL TANK
40
09683-01060
PLATE¤ OPERATING
41
203-00-41250
PLATE¤ OPERATING
42
09685-00001
PLATE¤ OPERATING,SAFETY LOCK LEVER
Выбрано товаров: 51
