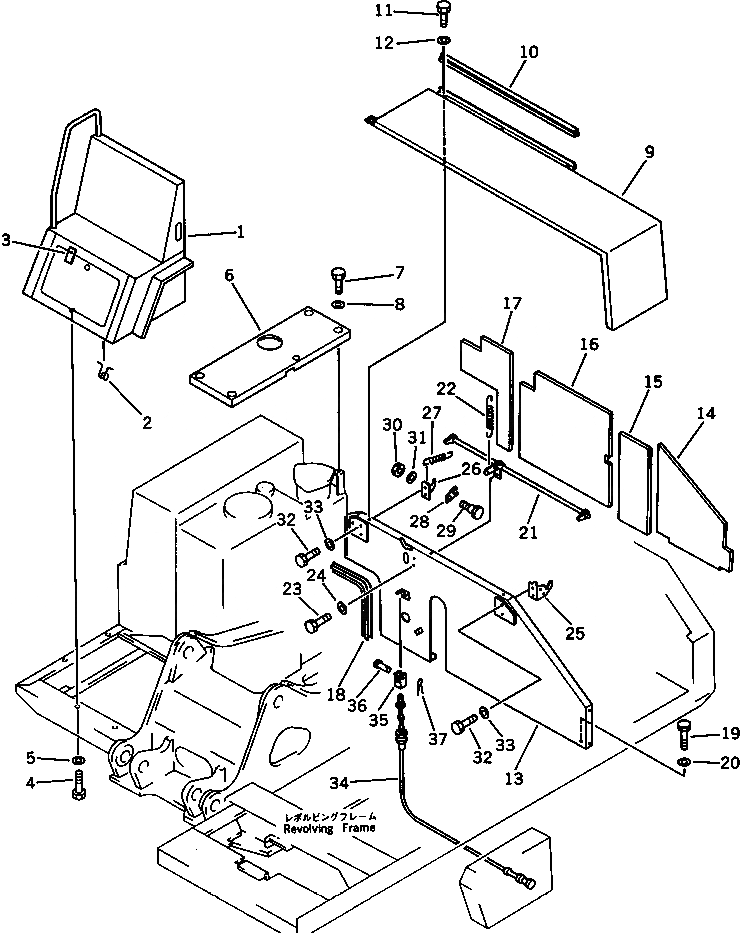

Запчасти Komatsu PC100SS-3 MACHINERY ОБСТАНОВКА (/)(№.-) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

|1

203-54-00324

COVER ASS'Y

|1

203-54-00323

COVER ASS'Y

|1

203-54-00322

COVER ASS'Y

1

COVER

|1

COVER

|1

COVER

2

09467-00002

SPRING

3

205-60-71220

LOCK ASS'Y

4

01010-51025

BOLT

5

01643-31032

WASHER

6

203-54-42821

COVER

7

01010-51020

BOLT

8

01643-31032

WASHER

9

203-54-42363

COVER

10

203-54-42850

TRIM

11

01010-51020

BOLT

12

01643-31032

WASHER

13

203-54-44610

COVER ASS'Y

14

203-54-44530

COVER

15

203-54-44540

SHEET

16

203-54-44550

COVER

17

203-54-44560

SHEET

18

203-54-42840

TRIM

19

01010-51025

BOLT

20

01643-31032

WASHER

21

203-54-42331

LEVER

22

203-54-42661

SPRING

23

01010-51020

BOLT

24

01643-31032

WASHER

25

203-54-42290

BRACKET,L.H.

26

203-54-42310

BRACKET,R.H.

27

203-54-42340

SPRING

28

203-54-42320

LEVER

29

20T-54-26310

BOLT

30

01580-11210

NUT

31

01643-31232

WASHER

32

01010-51020

BOLT

33

01643-31032

WASHER

34

203-54-42562

CABLE,(L=2400)

35

04211-20500

YOKE

36

04205-10514

PIN

37

04050-11210

PIN,COTTER
