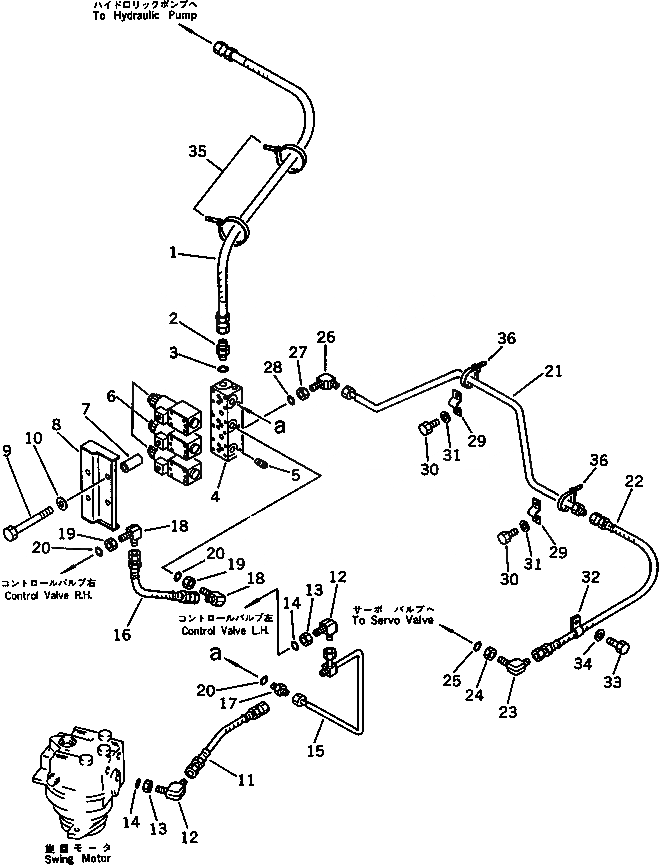

Запчасти Komatsu PC100SS-3 ГИДРОЛИНИЯ (ГЛАВН. КОНТУР) (/) (АВТОМ. ЗАМЕДЛЕНИЕ ОБОРОТОВ)(№8-89) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

07102-20312

HOSE

2

07230-10315

UNION

3

07002-02034

O-RING

4

203-62-41812

BLOCK

5

07042-10108

PLUG

6

21K-60-12301

SOLENOID VALVE ASS'Y

|6

07000-11009

O-RING

|6

01252-40545

BOLT

7

203-62-44510

SPACER

8

203-62-44490

COVER

9

01011-51235

BOLT

10

01643-31232

WASHER

11

203-62-44120

HOSE

12

07232-20210

ELBOW

13

07239-11408

NUT

14

07002-01423

O-RING

15

203-62-44130

TUBE

16

203-62-44120

HOSE

17

07230-10210

UNION

18

07232-20210

ELBOW

19

07239-11408

NUT

20

07002-01423

O-RING

21

203-62-44110

TUBE,(FOR LONG LEVER CONTROL)

22

203-62-42980

HOSE¤ 850MM,(FOR LONG LEVER CONTROL)

23

07232-20210

ELBOW,(FOR LONG LEVER CONTROL)

24

07239-11408

NUT,(FOR LONG LEVER CONTROL)

25

07002-01423

O-RING,(FOR LONG LEVER CONTROL)

26

07232-20315

ELBOW,(FOR LONG LEVER CONTROL)

27

07239-12009

NUT,(FOR LONG LEVER CONTROL)

28

07002-02034

O-RING,(FOR LONG LEVER CONTROL)

29

07282-01568

CLAMP,(FOR LONG LEVER CONTROL)

30

01010-50816

BOLT,(FOR LONG LEVER CONTROL)

31

01643-30823

WASHER,(FOR LONG LEVER CONTROL)

32

08036-02514

CLIP,(FOR LONG LEVER CONTROL)

33

01010-51025

BOLT,(FOR LONG LEVER CONTROL)

34

01643-31032

WASHER,(FOR LONG LEVER CONTROL)

35

08034-00823

BAND

36

08034-00519

BAND,(FOR LONG LEVER CONTROL)
