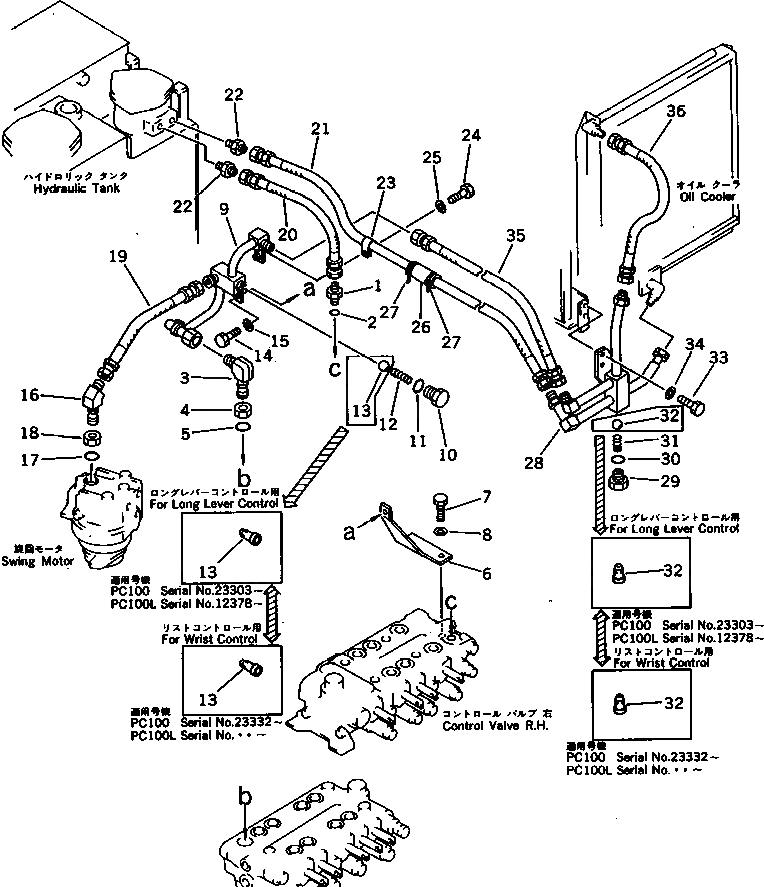

Запчасти Komatsu PC100SS-3 ГИДРОЛИНИЯ (КЛАПАН - МАСЛООХЛАДИТЕЛЬ - БАК) (/)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

202-62-14170

NIPPLE

2

07002-03334

O-RING

3

07232-21034

ELBOW

4

07239-13320

NUT

5

07002-03334

O-RING

6

203-62-45110

BRACKET

7

01010-51230

BOLT

8

01643-31232

WASHER

9

203-62-45210

TUBE,(FOR LONG LEVER CONTROL)

|9

203-62-44265

TUBE,(FOR LONG LEVER CONTROL)

|9

203-62-44264

TUBE,(FOR LONG LEVER CONTROL)

|9

203-62-45210

TUBE,(FOR WRIST CONTROL)

|9

203-62-44265

TUBE,(FOR WRIST CONTROL)

|9

203-62-44264

TUBE,(FOR WRIST CONTROL)

10

203-62-31660

PLUG

11

07002-03334

O-RING

12

150-49-11560

SPRING

13

21K-60-99976

POPPET,(FOR LONG LEVER CONTROL)

|13

04260-02540

BALL,(FOR LONG LEVER CONTROL)

|13

21K-60-99976

POPPET,(FOR WRIST CONTROL)

|13

04260-02540

BALL,(FOR WRIST CONTROL)

14

01010-51020

BOLT

15

01643-31032

WASHER

16

07234-21034

ELBOW

17

07002-03334

O-RING

18

07239-13320

NUT

19

203-62-44770

HOSE

20

07102-20606

HOSE

21

07102-20614

HOSE

22

07238-00628

CONNECTOR

23

08036-03014

CLIP

|23

142-06-13540

CLIP

24

01010-51025

BOLT

25

01643-31032

WASHER

26

203-62-41150

COVER

27

08034-00823

BAND

28

203-62-45190

HOSE,(FOR LONG LEVER CONTROL)

|28

203-62-44472

TUBE,(FOR LONG LEVER CONTROL)

|28

203-62-44471

TUBE,(FOR LONG LEVER CONTROL)

|28

203-62-45190

HOSE,(FOR WRIST CONTROL)

|28

203-62-44472

TUBE,(FOR WRIST CONTROL)

|28

203-62-44471

TUBE,(FOR WRIST CONTROL)

29

203-62-31660

PLUG

30

07002-03334

O-RING

31

150-49-11560

SPRING

32

205-60-51290

POPPET,(FOR LONG LEVER CONTROL)

|32

04260-02540

BALL,(FOR LONG LEVER CONTROL)

|32

205-60-51290

POPPET,(FOR WRIST CONTROL)

|32

04260-02540

BALL,(FOR WRIST CONTROL)

33

01010-51020

BOLT

34

01643-31032

WASHER

35

07102-20610

HOSE

36

07102-20606

HOSE
