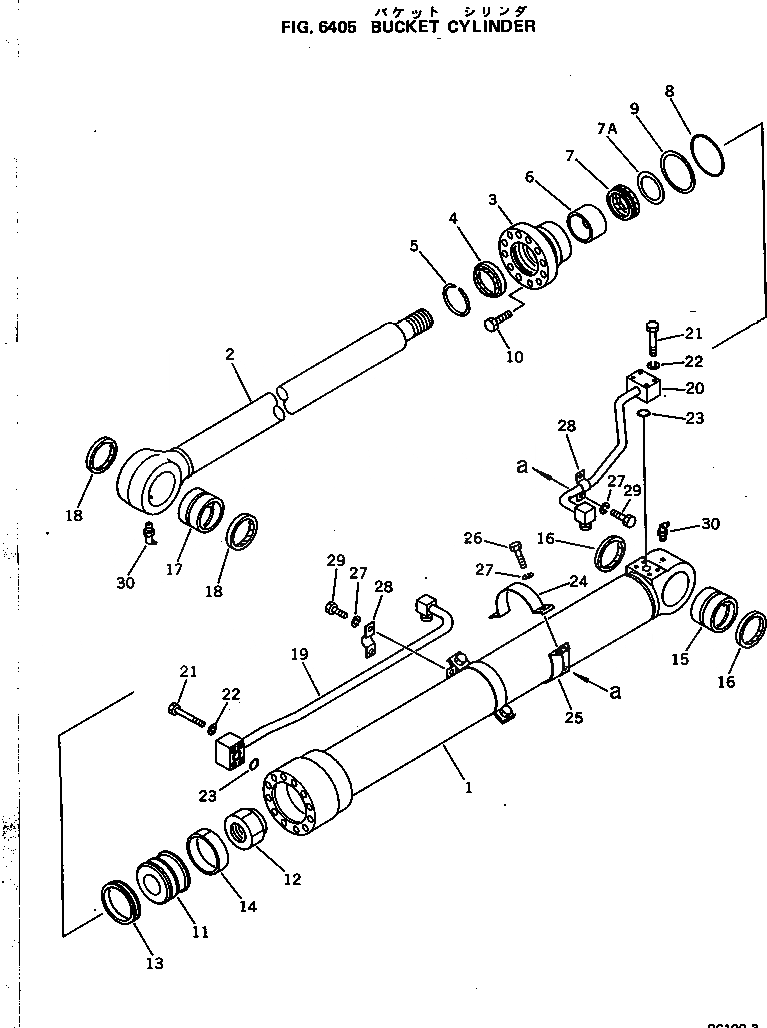

Запчасти Komatsu PC100SS-3 ЦИЛИНДР КОВША УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

203-63-79300

BUCKET CYLINDER A.

|1

203-63-72501

BUCKET CYLINDER A.

|1

202-63-72500

BUCKET CYLINDER A.

|1

203-63-79310

CYLINDER SUB ASS'Y

|1

203-63-72510

CYLINDER SUB ASS'Y

1

203-63-72540

CYLINDER

2

203-63-72520

ROD,PISTON

3

707-27-10190

HEAD,CYLINDER

|3

707-27-10170

HEAD,CYLINDER

4

07016-20658

SEAL,DUST (KIT)

|4

144-63-92170

SEAL,DUST (KIT)

5

07179-12079

RING,SNAP

|5

07179-00088

RING,SNAP

6

07177-06530

BUSHING

7

707-51-65030

PACKING,ROD (KIT)

|7

707-51-65211

PACKING,ROD (KIT)

7A

707-51-65630

RING,BUFFER (KIT)

8

07000-12095

O-RING (KIT)

9

707-35-91011

RING,BACK-UP (KIT)

|9

07146-02096

RING,BACK-UP (KIT)

10

01010-51450

BOLT

11

707-36-10261

PISTON

12

07165-14547

NUT

13

707-44-10080

RING,PISTON (KIT)

14

07155-01025

RING,WEAR (KIT)

15

707-76-65040

BUSHING

16

07145-00065

SEAL,DUST (KIT)

17

707-76-65050

BUSHING

18

707-77-65110

SEAL,DUST (KIT)

19

203-63-72571

TUBE

|19

202-63-72570

TUBE

20

203-63-72581

TUBE

|20

202-63-72580

TUBE

21

01010-50850

BOLT

22

01602-20825

WASHER,SPRING

23

07000-13025

O-RING (KIT)

24

707-88-99060

BAND

25

707-88-99010

BAND

26

01010-51035

BOLT

27

01602-21030

WASHER,SPRING

28

07282-02288

CLAMP

29

01010-51020

BOLT

30

07020-00675

FITTING,GREASE
