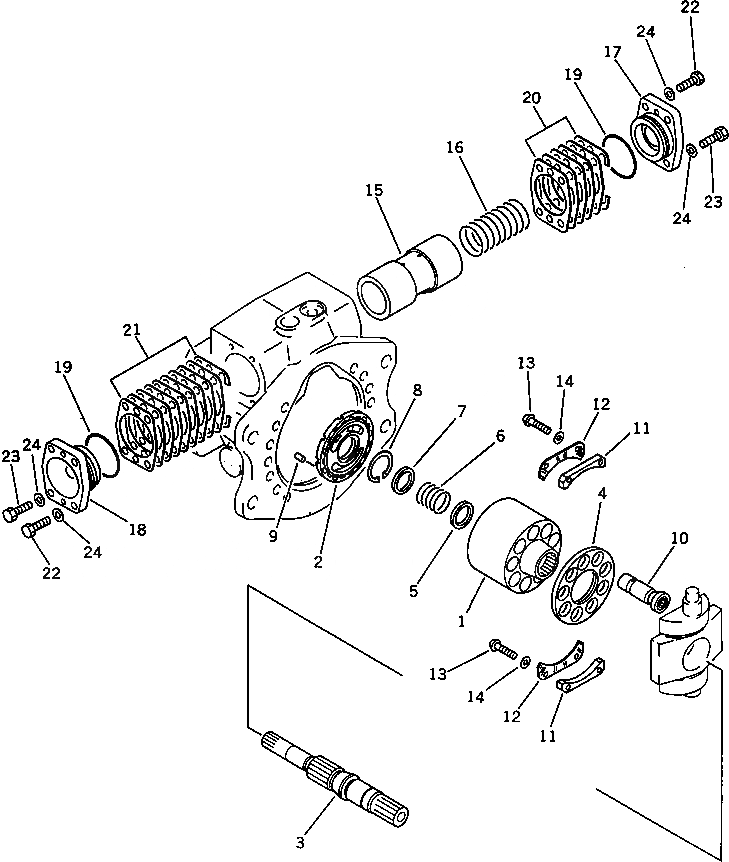

Запчасти Komatsu PC100SS-3 ГИДР. НАСОС.¤ ПЕРЕДН. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-23-01012

PUMP ASS'Y,(HPV55+55)

|1

708-23-01011

PUMP ASS'Y,(HPV55+55)

|1

708-23-01010

PUMP ASS'Y,(HPV55+55)

|1

708-23-10101

PUMP ASS'Y,(HPV55+55)

|1

708-23-11101

PUMP SUB ASS'Y

|1

708-23-11100

PUMP SUB ASS'Y

|1

708-23-00010

BLOCK ASS'Y

|1

708-23-00130

BLOCK ASS'Y

1

CYLINDER BLOCK

|1

CYLINDER BLOCK

2

PLATE,VALVE

3

708-23-12711

SHAFT,FRONT

|3

708-23-12710

SHAFT,FRONT

4

708-23-13342

RETAINER,SHOE

|4

708-23-13341

RETAINER,SHOE

5

708-23-13130

WASHER

6

708-23-13140

SPRING

7

708-23-13120

WASHER

8

04065-03815

RING,SNAP

9

720-68-19610

PIN

10

708-23-13311

PISTON ASS'Y

|10

708-23-13310

PISTON ASS'Y

11

708-23-05041

SPACER KIT

|11

708-23-05040

SPACER KIT

|11

SPACER

|11

SPACER

|11

SPACER

|11

SPACER

|11

SPACER

|11

SPACER

12

708-23-13431

RETAINER

13

708-23-13460

SCREW

14

01643-30623

WASHER

15

708-23-14110

PISTON

16

708-23-14130

SPRING

17

708-23-14140

CAP

18

708-23-14150

CAP

19

07000-02055

O-RING

20

708-23-05080

SHIM KIT

|20

SHIM

|20

SHIM

|20

SHIM

|20

SHIM

21

708-23-05090

SHIM KIT

|21

SHIM

|21

SHIM

|21

SHIM

|21

SHIM

22

01010-50840

BOLT

23

01010-30830

BOLT

24

01643-30823

WASHER
