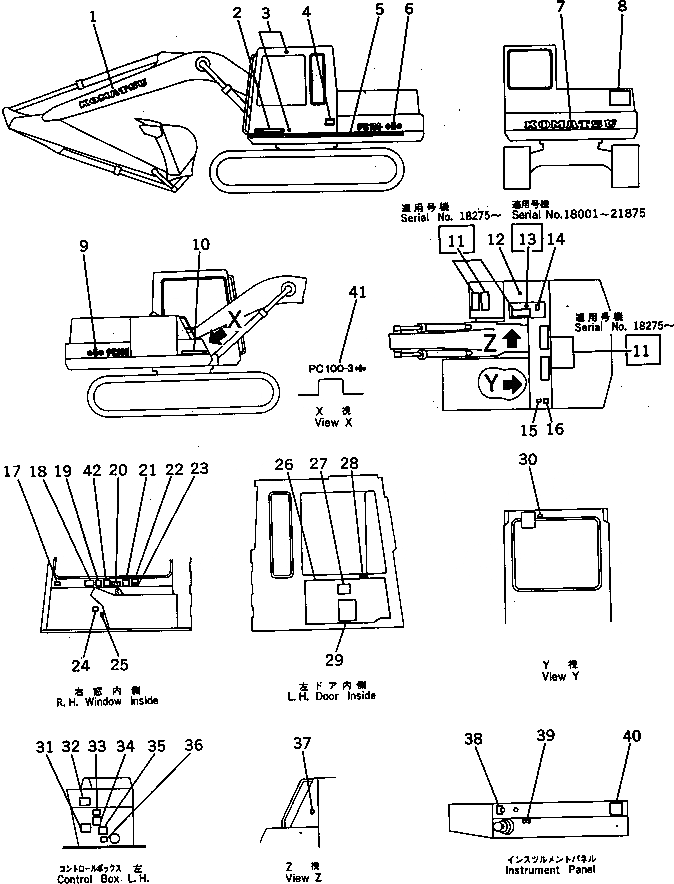

Запчасти Komatsu PC100S-3 МАРКИРОВКА (ДЛЯ WRIST УПРАВЛ-Е) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
1
09690-41250
PLATE¤ MARK,KOMATSU
2
09690-50500
PLATE¤ MARK,KOMATSU
3
205-00-63770
PLATE
4
09602-01643
PLATE¤ NAME,(LIMITED SUPPLY)
|4
01220-60408
SCREW
|4
01601-20410
WASHER,SPRING
5
142-54-16170
STRIPE
|5
203-00-41140
PLATE¤ STRIPE,STRIPE
6
202-00-51111
PLATE¤ MARK,PC100 L.H.
7
203-00-41131
PLATE¤ MARK,KOMATSU
8
09133-00100
PLATE¤ SAFETY,KEEP OUT OF TURNING AREA
9
202-00-51121
PLATE¤ MARK,PC100 R.H.
10
09690-50500
PLATE¤ MARK,KOMATSU
11
154-54-23260
SEAT,NONSKID
12
09652-01121
PLATE¤ CAUTION,FUEL
|12
09669-00002
PLATE¤ CAUTION,FUEL
13
09669-00003
PLATE¤ CAUTION,HYDRAULIC OIL TANK
14
09653-00110
PLATE¤ SAFETY,HYDRAULIC TANK CAP
|14
09653-00100
PLATE¤ SAFETY,HYDRAULIC TANK CAP
15
09668-00100
PLATE¤ SAFETY,RADIATOR CAP
16
205-00-65150
PLATE¤ CAUTION,RADIATOR
|16
09650-01103
PLATE¤ INSTRUCTION,RADIATOR
17
205-00-52192
PLATE¤ CAUTION
18
205-00-71291
PLATE¤ OPERATING
|18
205-00-71290
PLATE¤ OPERATING
19
205-00-71350
PLATE¤ OPERATING
20
205-00-63540
PLATE¤ CAUTION
21
205-00-63250
PLATE¤ CAUTION
22
09649-00101
PLATE¤ INSTRUCTION
23
203-00-31330
PLATE¤ OPERATING
24
09131-00100
PLATE¤ SAFETY,SWING LOCK LEVER
25
09685-00002
PLATE¤ OPERATING,SWING LOCK LEVER
26
203-54-41651
COVER
|26
203-54-41650
COVER
27
203-00-21131
PLATE¤ SAFETY
28
205-00-71340
PLATE¤ OPERATING,DOOR LOCK
29
203-00-41151
CHART¤ OIL
|29
203-00-41150
CHART¤ OIL
30
205-00-63230
PLATE¤ CAUTION,INSPECTION AND MAINTENANCE
31
202-00-51131
PLATE¤ DATA
|31
202-00-51130
PLATE¤ DATA
32
203-00-31320
PLATE¤ CAUTION
33
09651-00100
PLATE¤ SAFETY,BEFORE OPERATING
34
09173-00100
PLATE¤ SAFETY
35
09667-00100
PLATE¤ SAFETY
36
203-00-41180
PLATE¤ OPERATING
37
203-00-31120
PLATE¤ INSTRUCTION,HYDRAULIC OIL TANK
38
09683-01060
PLATE¤ OPERATING
39
09685-00001
PLATE¤ OPERATING,SAFETY LOCK LEVER
40
203-00-41250
PLATE¤ OPERATING
41
21K-00-22170
PLATE¤ MARK
42
203-00-41520
PLATE¤ CAUTION
Выбрано товаров: 52
