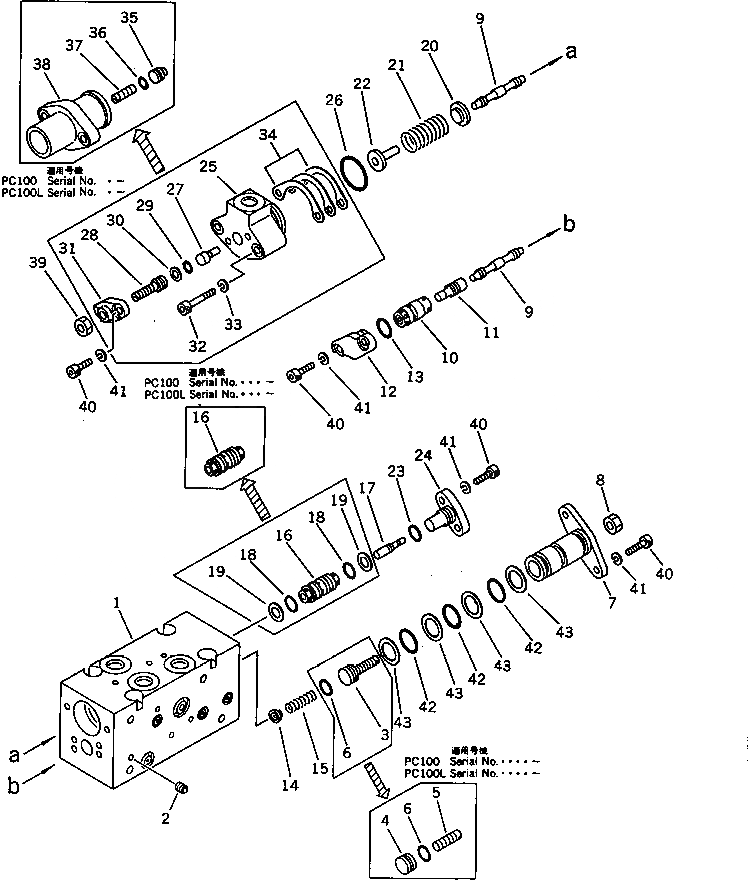

Запчасти Komatsu PC100S-3 CUT OFF И NEGATIVE УПРАВЛЯЮЩ. КЛАПАН¤ ПЕРЕДН. УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
708-23-01012
PUMP ASS'Y,(HPV55+55)
|1
708-23-01011
PUMP ASS'Y,(HPV55+55)
|1
708-23-01010
PUMP ASS'Y,(HPV55+55)
|1
708-23-10101
PUMP ASS'Y,(HPV55+55)
|1
708-23-07111
SERVO VALVE ASS'Y,FRONT
|1
708-23-07110
SERVO VALVE ASS'Y,FRONT
|1
708-23-15100
SERVO VALVE ASS'Y,FRONT
|1
708-23-07511
VALVE ASS'Y
|1
708-23-07510
VALVE ASS'Y
|1
708-23-17100
VALVE ASS'Y
|1
708-23-07042
BODY ASS'Y
|1
BODY ASS'Y
|1
BODY ASS'Y
1
BODY
|1
BODY
|1
BODY
2
PLUG
3
708-25-17122
PLUG
|3
708-25-17121
PLUG
|3
708-25-17120
PLUG
4
708-25-17420
PLUG
5
708-25-17430
SCREW
6
07000-02010
O-RING
|6
07000-02012
O-RING
7
708-25-17131
COVER
|7
708-25-17130
COVER
8
01580-10806
NUT
9
708-25-17141
SPOOL
|9
708-25-17140
SPOOL
10
708-25-17150
SLEEVE
11
708-25-17160
PISTON
12
708-25-17170
COVER
13
07000-02014
O-RING
14
708-25-17180
SEAT
15
708-25-17190
SPRING
16
708-25-17211
SLEEVE
|16
708-25-17210
SLEEVE
17
708-25-17220
PISTON
18
07000-12012
O-RING
19
07001-02012
RING,BACK-UP
20
708-25-17370
SEAT
|20
708-25-17240
SEAT
21
708-25-17250
SPRING
22
708-25-17260
SEAT
23
07000-02012
O-RING
24
708-25-17230
COVER
25
708-25-17280
COVER
26
07000-03028
O-RING
27
708-25-17270
PISTON
28
708-25-17290
PLUG
29
07000-11009
O-RING
30
07001-01009
RING,BACK-UP
31
708-25-17310
COVER
32
01252-30630
BOLT
33
01602-20619
WASHER,SPRING
34
708-25-17320
SHIM
|34
708-25-17330
SHIM
|34
708-25-17340
SHIM
35
708-25-17410
PLUG
36
07000-01009
O-RING
37
708-25-15340
SCREW
38
708-25-17350
COVER
39
01580-10806
NUT
40
708-25-15320
BOLT
|40
01252-30616
BOLT
41
01602-20619
WASHER,SPRING
42
07000-12021
O-RING
43
07001-02021
RING,BACK-UP
Выбрано товаров: 68
