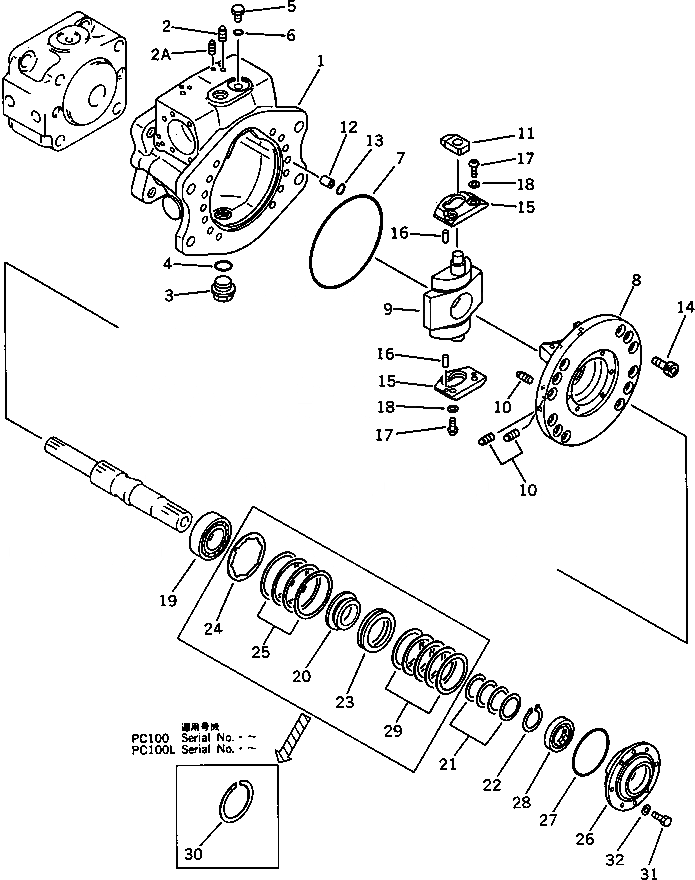

Запчасти Komatsu PC100S-3 ГИДР. НАСОС.¤ ПЕРЕДН. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
708-23-01012
PUMP ASS'Y,(HPV55+55)
|1
708-23-01011
PUMP ASS'Y,(HPV55+55)
|1
708-23-01010
PUMP ASS'Y,(HPV55+55)
|1
708-23-10101
PUMP ASS'Y,(HPV55+55)
|1
708-23-11101
PUMP SUB ASS'Y
|1
708-23-11100
PUMP SUB ASS'Y
|1
708-23-00340
CASE ASS'Y,FRONT
|1
708-23-00081
CASE ASS'Y,FRONT
1
CASE,FRONT
|1
CASE,FRONT
2
PLUG
|2
PLUG
2A
PLUG
|2A
PLUG
3
07044-12412
PLUG
4
07002-02434
O-RING
5
720-68-19870
PLUG
6
07002-01223
O-RING
7
706-73-42370
O-RING
|8
708-23-00360
CRADLE ASS'Y,FRONT
|8
708-23-00110
CRADLE ASS'Y,FRONT
8
CRADLE,FRONT
|8
CRADLE,FRONT
9
CAM,CAM
10
PLUG
11
708-23-14120
SLIDER
12
708-23-12330
JOINT
13
07000-12015
O-RING
14
708-25-12350
BOLT
15
708-23-12340
PLATE
16
708-23-12370
PIN
17
708-23-12350
SCREW
18
01643-30823
WASHER
19
708-23-12751
BEARING
|19
708-23-12750
BEARING
20
708-23-12770
RETAINER
21
708-23-05010
WASHER KIT
|21
WASHER¤ 2.60MM
|21
WASHER¤ 2.70MM
|21
WASHER¤ 2.80MM
|21
WASHER¤ 2.90MM
22
708-23-12840
RING,SNAP
23
06000-51110
BEARING
24
708-23-12910
COLLAR
25
708-23-05020
SHIM KIT
|25
SHIM
|25
SHIM
26
708-23-12851
HOUSING
|26
708-23-12850
HOUSING
27
07000-02065
O-RING
|27
07000-02075
O-RING
28
708-23-12860
SEAL,OIL
29
708-23-05030
SHIM KIT
|29
SHIM
|29
SHIM
|29
SHIM
30
708-23-12660
RING
31
01010-30616
BOLT
32
01643-30623
WASHER
Выбрано товаров: 59
