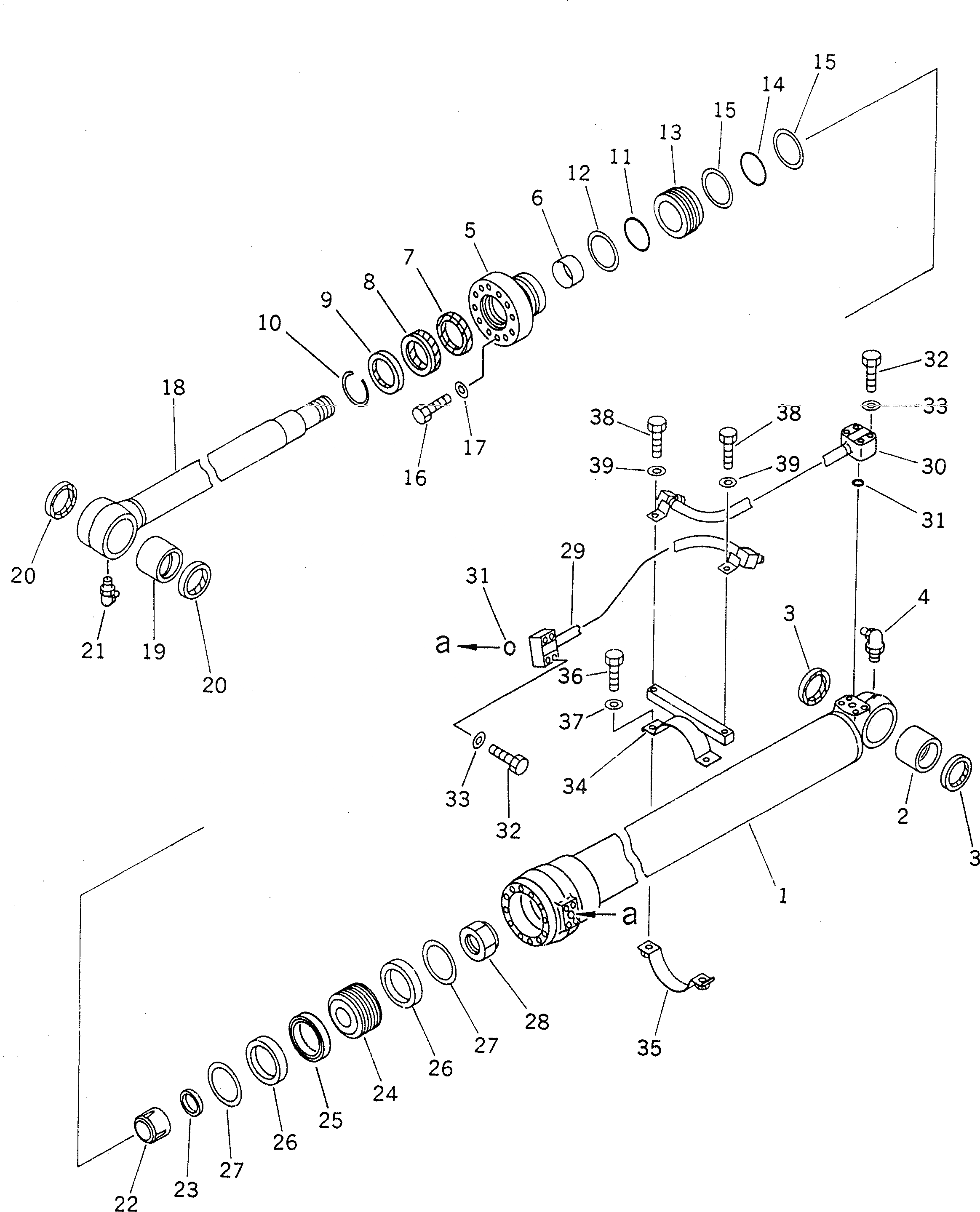

Запчасти Komatsu PC100N-6 ЦИЛИНДР СТРЕЛЫ(ВНУТР. ЧАСТИ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

20X-63-02201

CYLINDER ASS'Y \

1

20X-63-54141

CYLINDER

2

707-76-70230

BUSHING

3

07145-00070

SEAL,DUST (KIT)

4

07020-00675

FITTING,GREASE

5

707-27-11610

HEAD,CYLINDER

6

707-52-90450

BUSHING

7

707-51-70630

RING,BUFFER (KIT)

8

707-51-70030

PACKING (KIT)

9

144-63-95170

SEAL,DUST (KIT)

10

07179-12084

RING,SNAP

11

07000-15105

O-RING (KIT)

12

07001-05105

RING,BACK-UP (KIT)

13

707-71-32400

COLLAR

14

07000-15105

O-RING (KIT)

15

07001-05105

RING,BACK-UP (KIT)

16

01010-81670

BOLT

17

01643-51645

WASHER

18

20X-63-54120

ROD

19

707-76-70230

BUSHING

20

07145-00070

SEAL,DUST (KIT)

21

07020-00675

FITTING,GREASE

22

707-71-60701

PLUNGER

23

707-40-11370

SPACER

24

707-36-11310

PISTON

25

707-44-11180

RING,PISTON (KIT)

26

707-39-11110

RING,WEAR (KIT)

27

707-44-11911

RING

28

07165-15252

NUT

29

20X-63-54171

TUBE

30

20X-63-54180

TUBE

31

07000-13025

O-RING (KIT)

32

01010-50850

BOLT

33

01643-50823

WASHER

34

707-88-95671

BRACKET

35

707-88-95960

BAND

36

01010-51035

BOLT

37

01643-51032

WASHER

38

01010-51020

BOLT

39

01643-31032

WASHER
