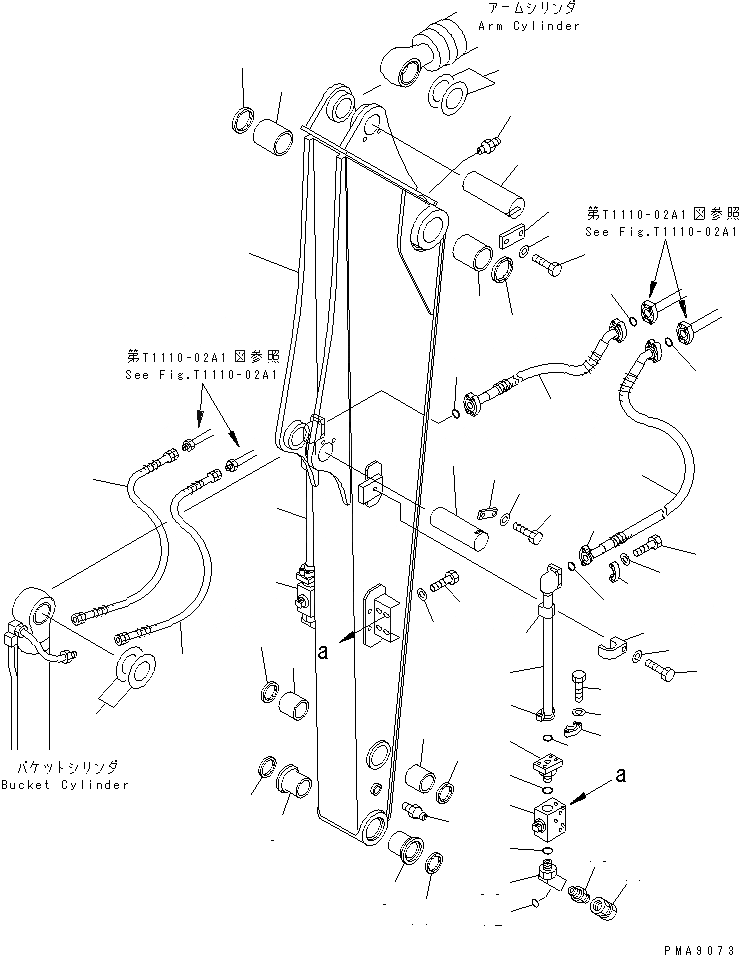

Запчасти Komatsu PC100N-6 РУКОЯТЬ (-ACTUATER НАВЕСН. ОБОРУД) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

20X-973-0050

ARM ASS'Y,1 ACTUATOR

1

ARM

2

20X-70-32120

BUSHING

3

20X-70-22140

BUSHING

4

201-70-22141

BUSHING

5

07096-20412

HOSE

6

20X-70-31240

PIN

7

04082-00514

LOCK

8

01010-81435

BOLT

9

01643-31445

WASHER

10

202-70-48460

SPACER¤ 1.0MM

|10

203-70-44430

SPACER¤ 2.0MM

11

20X-70-32210

PIN

12

04082-00212

LOCK

13

01010-81230

BOLT

14

01643-31232

WASHER

15

203-70-24150

SPACER¤ 1.0MM

|15

203-70-24160

SPACER¤ 2.0MM

16

07145-00065

SEAL,DUST

17

130-09-12931

SEAL,DUST

18

07020-00000

FITTING,GREASE

19

07097-20613

HOSE

20

07371-30640

FLANGE,SPLIT

21

07372-21035

BOLT

22

01643-51032

WASHER

23

07000-13025

O-RING

24

201-973-6642

TUBE

25

203-973-5780

CLAMP

26

203-62-43380

CUSHION

27

01010-81270

BOLT

28

01643-31232

WASHER

29

07371-30640

FLANGE,SPLIT

30

07372-21035

BOLT

31

01643-51032

WASHER

32

07000-13025

O-RING

33

201-973-6810

NIPPLE

34

07002-13334

O-RING

35

203-973-5802

VALVE ASS'Y

36

01010-81025

BOLT

37

01643-31032

WASHER

38

203-973-5730

ELBOW

39

07002-13334

O-RING

40

20D-973-3350

NIPPLE

41

20D-973-3360

PLUG

42

203-00-56640

PLATE¤ MARK
