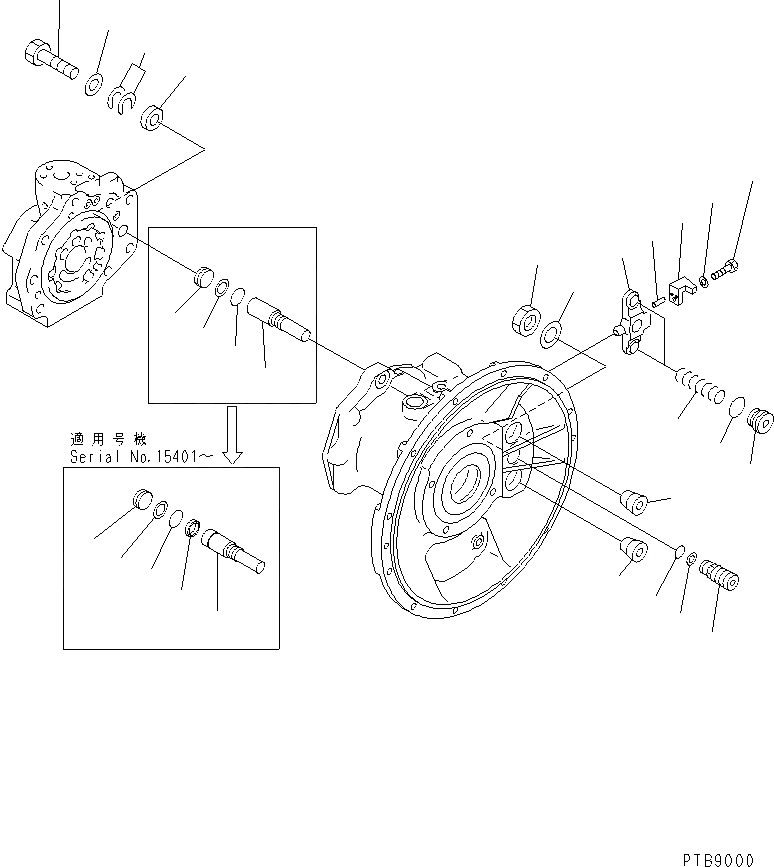

Запчасти Komatsu PC100L-6 ОСНОВН. НАСОС (/9)(№-7) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

708-1L-00071

PUMP ASS'Y

|1

708-1L-00033

PUMP ASS'Y

|1

708-1L-01071

PUMP SUB ASS'Y

|1

708-1L-01033

PUMP SUB ASS'Y

1

708-1L-24110

PISTON

|1

708-2L-24110

PISTON

1A

700-90-61281

SEAL

2

708-2L-24122

ROD

3

708-2L-25883

CAM

4

04020-00514

PIN

5

01010-80620

BOLT

6

01643-30623

WASHER

7

708-2L-24161

STOPPER

8

708-2L-24920

O-RING

9

07001-03025

RING,BACK-UP

10

708-2L-24220

BOLT

11

708-2L-24230

WASHER

12

708-2L-24151

SEAT

13

708-2L-05010

SHIM KIT

|13

SHIM¤ 0.1MM

|13

SHIM¤ 0.2MM

|13

SHIM¤ 0.5MM

14

708-2L-24312

SCREW

15

07000-B2018

O-RING

16

07001-02018

RING,BACK-UP

17

01583-12716

NUT

18

708-2L-24340

SEAL,WASHER

19

708-2L-24141

SPRING

20

708-2L-24131

PLUG

21

07000-03030

O-RING

22

07043-01222

PLUG
