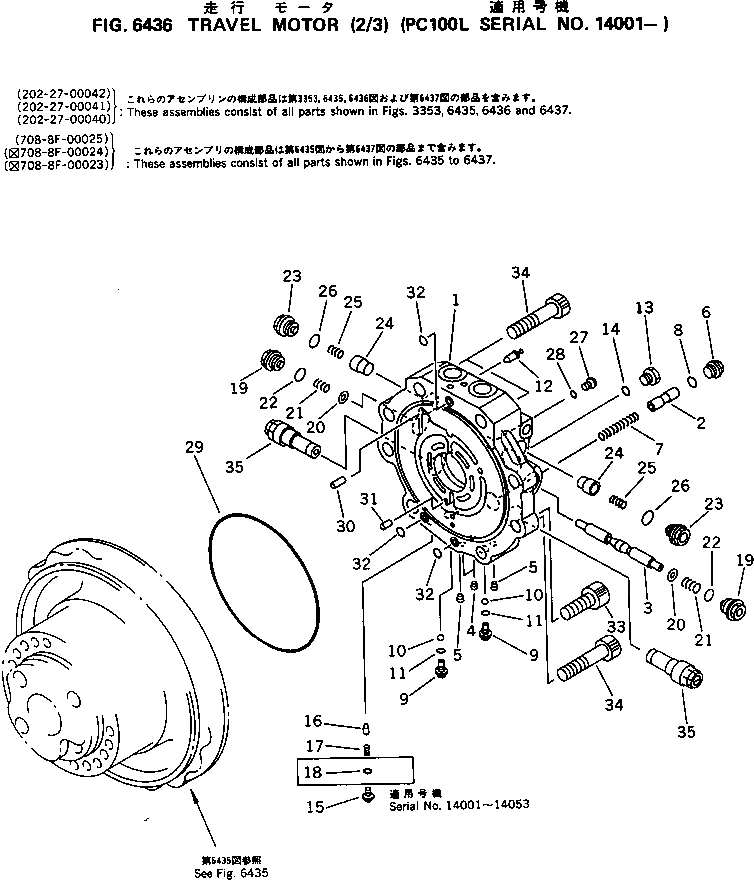

Запчасти Komatsu PC100L-5 МОТОР ХОДА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

202-27-00042

FINAL DRIVE ASS'Y

|1

202-27-00041

FINAL DRIVE ASS'Y

|1

202-27-00040

FINAL DRIVE ASS'Y

|1

708-8F-00025

TRAVEL MOTOR ASS'Y

|1

708-8F-00024

TRAVEL MOTOR ASS'Y

|1

708-8F-00023

TRAVEL MOTOR ASS'Y

|1

708-8F-04123

END COVER ASS'Y

1

COVER,END

2

SPOOL

3

SPOOL ASS'Y

|3

SPOOL

|3

SCREW

4

PLUG

5

PLUG

6

706-8E-14191

PLUG

7

706-8E-14170

SPRING

8

07002-11823

O-RING

9

706-8E-14110

PLUG

10

04260-00793

BALL

11

07002-11023

O-RING

12

20B-27-11210

BLEEDER

13

708-8E-16250

PLUG

14

07002-11823

O-RING

15

708-8E-16160

PLUG

16

708-8E-16180

VALVE

17

706-76-71130

SPRING

18

07002-11023

O-RING

19

708-8F-16170

PLUG

20

708-8E-16120

RING

21

708-8F-16250

SPRING

22

07002-12434

O-RING

23

708-8F-16170

PLUG

24

706-73-72420

VALVE

25

706-73-72440

SPRING

26

07002-12434

O-RING

27

708-8E-16160

PLUG

28

07002-11023

O-RING

29

07000-05230

O-RING

30

706-75-42830

PIN,DOWEL

31

720-68-19610

PIN

32

07000-12012

O-RING

33

708-8F-11230

BOLT

34

708-8F-11240

BOLT

35

702-73-01300

RELIEF VALVE ASS'Y,C.O.R.
