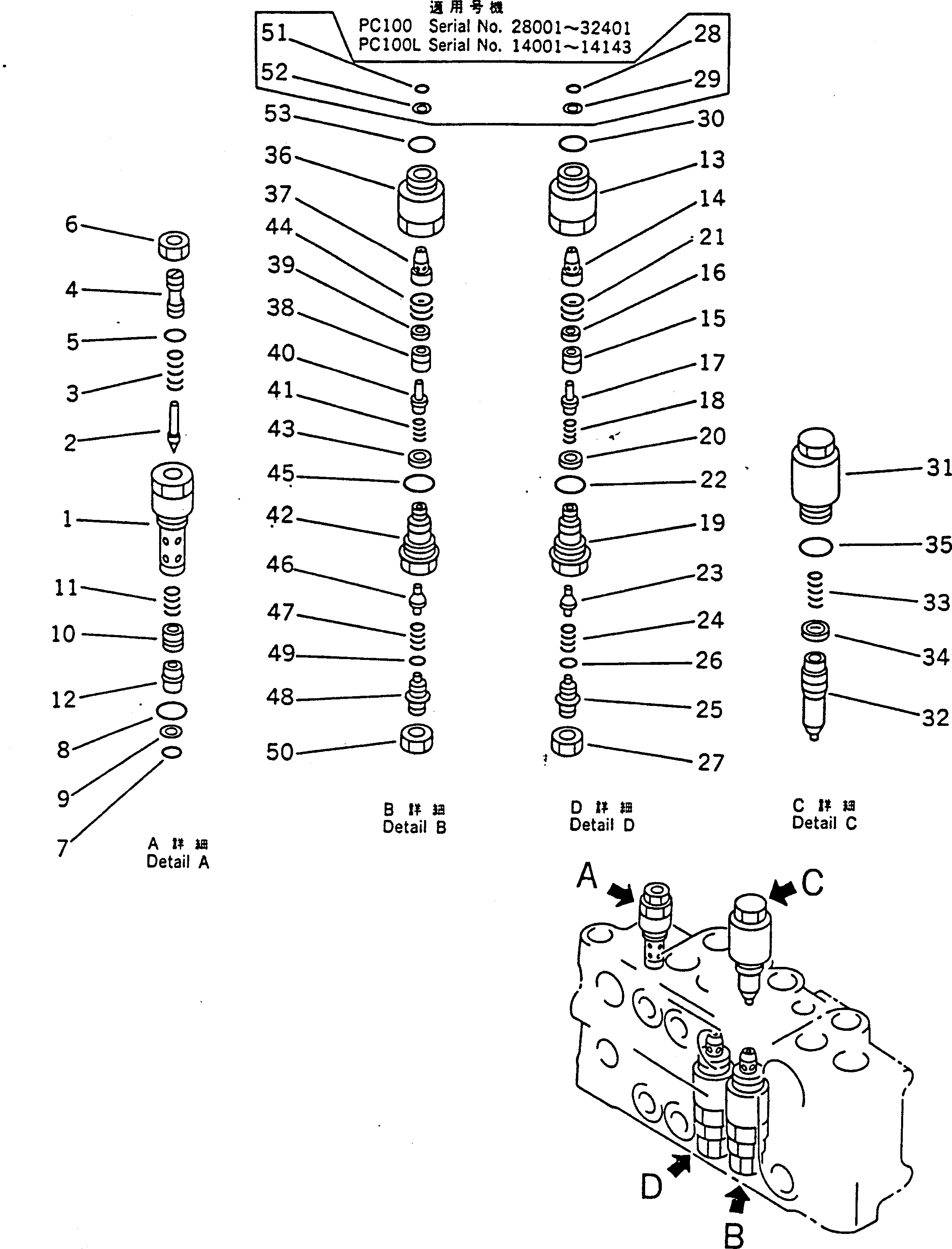

Запчасти Komatsu PC100L-5 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН ПРАВ.(/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
700-85-48001
VALVE ASS'Y,R.H.
|1
700-85-38003
VALVE ASS'Y,R.H.
|1
700-85-38002
VALVE ASS'Y,R.H.
|1
709-70-55300
VALVE ASS'Y,RELIEF
1
SLEEVE
2
709-70-51420
POPPET
3
709-70-51230
SPRING
4
700-20-51340
SCREW
5
07000-02011
O-RING
6
01582-11411
NUT
7
700-22-11410
O-RING
8
07002-02434
O-RING
9
700-20-51550
RING
10
VALVE
11
709-70-51210
SPRING
12
700-20-51540
RETAINER
|13
709-70-74501
VALVE ASS'Y,SUCTION AND SAFETY
|13
709-70-71500
VALVE ASS'Y,SUCTION AND SAFETY
13
709-70-71112
SLEEVE
|13
709-70-71511
SLEEVE
14
SLEEVE
15
POPPET
16
SEAL
17
PISTON
18
709-70-71210
SPRING
19
PLUG
20
SEAL
21
709-70-71220
SPRING
22
07002-02434
O-RING
23
POPPET
24
SPRING
25
SCREW
26
O-RING
27
NUT
28
700-22-11410
O-RING
29
700-80-64220
RING,BACK-UP
30
709-25-11390
O-RING
|30
07002-03034
O-RING
|31
709-20-81201
VALVE ASS'Y,SUCTION
|31
700-81-82001
VALVE ASS'Y,SUCTION
31
709-20-61110
SLEEVE
|31
700-80-62310
SLEEVE
32
VALVE
|32
VALVE
33
709-20-61160
SPRING
|33
700-80-62250
SPRING
34
SEAL
|34
SEAL
35
709-25-11390
O-RING
|35
07002-03034
O-RING
|36
709-70-74402
VALVE ASS'Y,SUCTION AND SAFETY
|36
709-70-71404
VALVE ASS'Y,SUCTION AND SAFETY
36
709-70-71112
SLEEVE
|36
709-70-71511
SLEEVE
37
SLEEVE
38
POPPET
39
SEAL
40
PISTON
41
709-70-71210
SPRING
42
PLUG
43
SEAL
44
709-70-71220
SPRING
45
07002-02434
O-RING
46
POPPET
47
SPRING
48
SCREW
49
O-RING
50
NUT
51
700-22-11410
O-RING
52
700-80-64220
RING,BACK-UP
53
709-25-11390
O-RING
|53
07002-03034
O-RING
Выбрано товаров: 72
