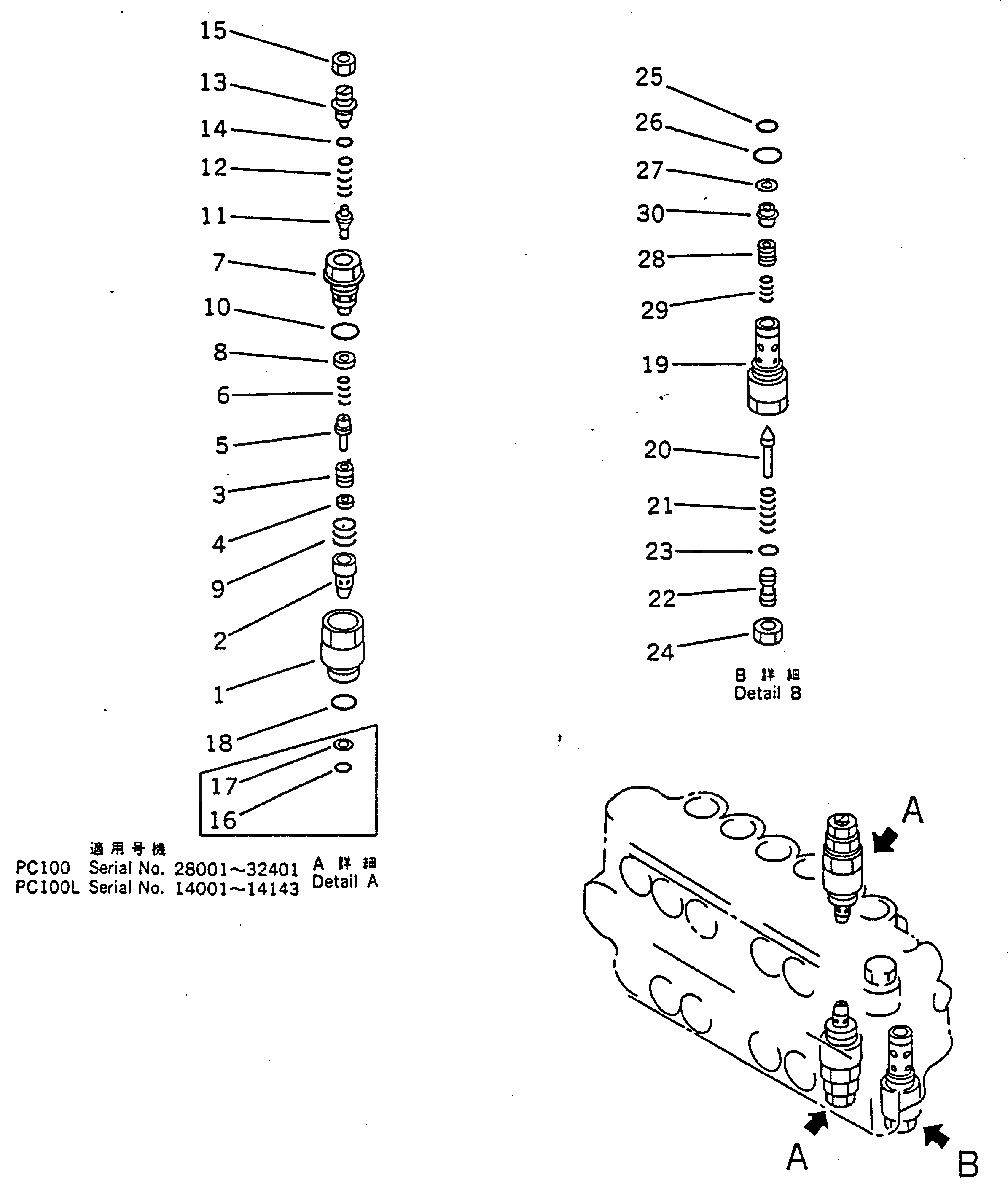

Запчасти Komatsu PC100L-5 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН ЛЕВ.(/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-86-45001

VALVE ASS'Y,L.H.

|1

700-86-35003

VALVE ASS'Y,L.H.

|1

700-86-35002

VALVE ASS'Y,L.H.

|1

709-70-74402

VALVE ASS'Y,SUCTION AND SAFETY

|1

709-70-71404

VALVE ASS'Y,SUCTION AND SAFETY

|1

709-70-71403

VALVE ASS'Y,SUCTION AND SAFETY

1

709-70-71112

SLEEVE

|1

709-70-71511

SLEEVE

2

SLEEVE

|2

SLEEVE

3

POPPET

|3

POPPET

4

SEAL

|4

SEAL

5

PISTON

|5

PISTON

6

709-70-71210

SPRING

7

PLUG

8

SEAL

9

709-70-71220

SPRING

10

07002-02434

O-RING

11

POPPET

12

SPRING

13

SCREW

14

O-RING

15

NUT

16

700-22-11410

O-RING

17

700-80-64220

RING,BACK-UP

18

709-25-11390

O-RING

|18

07002-03034

O-RING

|19

709-70-55300

VALVE ASS'Y,RELIEF

19

SLEEVE

20

709-70-51420

POPPET

21

709-70-51230

SPRING

22

700-20-51340

SCREW

23

07000-02011

O-RING

24

01582-11411

NUT

25

700-22-11410

O-RING

26

07002-02434

O-RING

27

700-20-51550

RING

28

VALVE

29

709-70-51210

SPRING

30

700-20-51540

RETAINER
