Запчасти Komatsu PC100L-3 MACHINERY ОБСТАНОВКА (/)(№.-99) ОСНОВНАЯ РАМА И КАБИНА

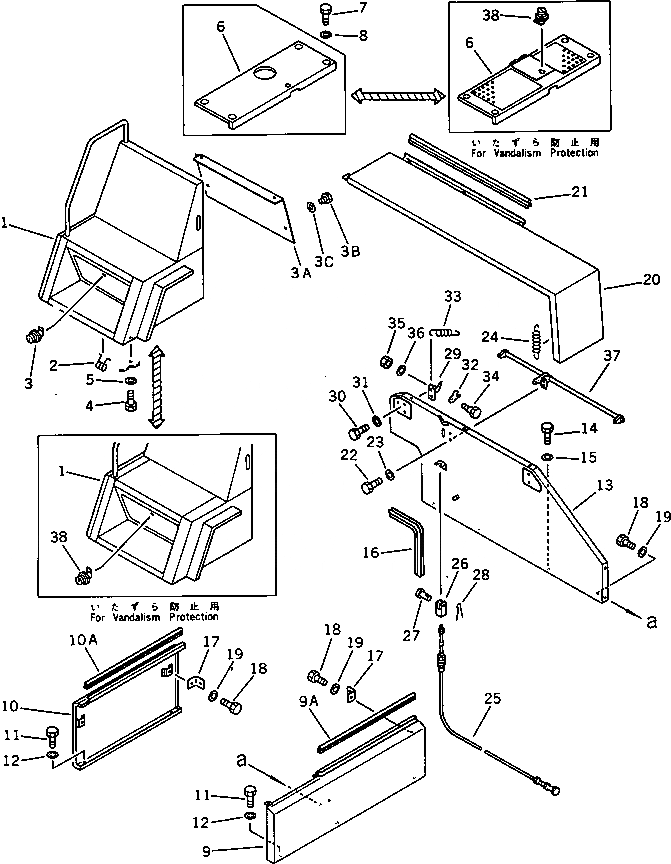

Схема запчастей Komatsu PC100L-3 - MACHINERY ОБСТАНОВКА (/)(№.-99) ОСНОВНАЯ РАМА И КАБИНА

Артикул

Название

Примечание

Количество

|$0

203-54-00324

COVER ASS'Y

|$1

203-54-00323

COVER ASS'Y

|$2

203-54-00322

COVER ASS'Y

|$5

203-54-00371

COVER ASS'Y,(FOR VANDALISM PROTECTION)

|$6

203-54-00370

COVER ASS'Y,(FOR VANDALISM PROTECTION)

1

COVER

1

COVER

1

COVER

1

COVER,(FOR VANDALISM PROTECTION)

1

COVER,(FOR VANDALISM PROTECTION)

2

09467-00002

SPRING

3

205-60-71220

LOCK ASS'Y

3A

203-54-45390

COVER

3B

01010-50816

BOLT

3C

01643-30823

WASHER

4

01010-51025

BOLT

5

01643-31032

WASHER

6

203-54-42171

COVER

6

203-54-42880

COVER,(FOR VANDALISM PROTECTION)

7

01010-51020

BOLT

8

01643-31032

WASHER

9

203-54-42170

COVER

9A

203-54-42830

TRIM

10

203-54-42180

COVER

10A

203-54-42830

TRIM

11

01010-51020

BOLT

12

01643-31032

WASHER

13

203-54-42152

COVER

14

01010-51025

BOLT

15

01643-31032

WASHER

16

203-54-42840

TRIM

17

203-54-42780

PLATE

18

01010-51020

BOLT

19

01643-31032

WASHER

20

203-54-42363

COVER

21

203-54-42850

TRIM

22

01010-51020

BOLT

23

01643-31032

WASHER

24

203-54-42661

SPRING

25

203-54-42562

CABLE,(L=2400)

26

04211-20500

YOKE

27

04205-10514

PIN

28

04050-11210

PIN,COTTER

29

203-54-42290

BRACKET,L.H.

29

203-54-42310

BRACKET,R.H.

30

01010-51020

BOLT

31

01643-31032

WASHER

32

203-54-42320

LEVER

33

203-54-42340

SPRING

34

20T-54-26310

BOLT

35

01580-11210

NUT

36

01643-31232

WASHER

37

203-54-42331

LEVER

38

205-60-71220

LOCK ASS'Y,(FOR VANDALISM PROTECTION)

Выбрано товаров: 54
