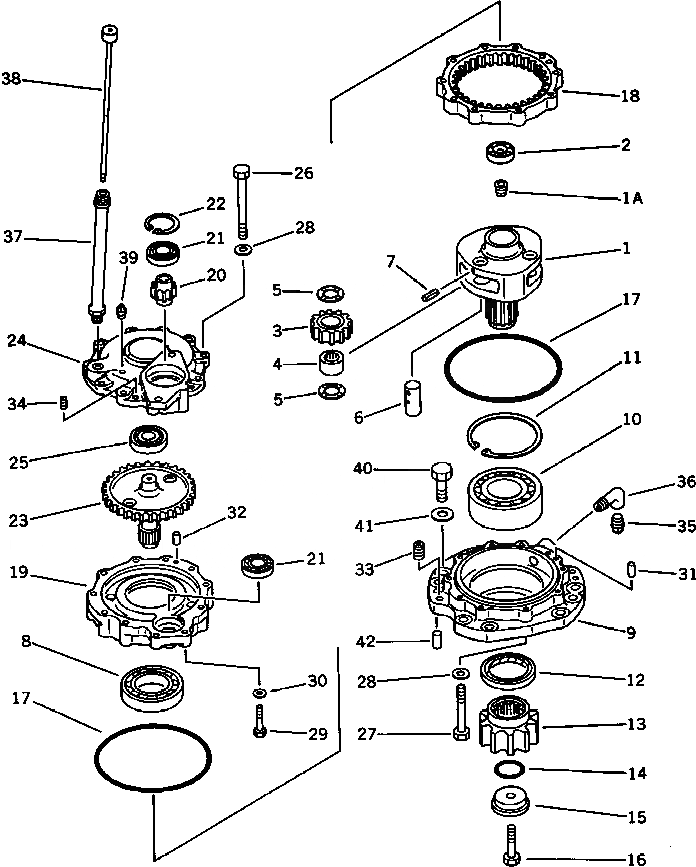

Запчасти Komatsu PC100L-3 МЕХАНИЗМ ПОВОРОТА ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯ

|$0

203-26-00101

SWING MACHINERY A.

|$1

203-26-00100

SWING MACHINERY A.

1

203-26-00050

CARRIER ASS'Y

1

203-26-41141

CARRIER ASS'Y

1

CARRIER

1A

07043-00415

PLUG

2

06040-06007

BEARING

3

203-26-41170

GEAR

4

203-26-41240

BEARING

5

203-26-41250

WASHER,THRUST

6

203-26-41231

SHAFT

7

04025-00832

PIN,SPRING

8

20G-26-11260

BEARING

9

20G-26-11110

CAGE

10

06030-22317

BEARING

11

04071-00180

RING,SNAP

12

07012-00100

SEAL

13

203-26-41191

GEAR

14

07000-05065

O-RING

15

20G-26-11250

HOLDER

16

01011-52030

BOLT

16

01010-52075

BOLT

17

203-26-41220

O-RING

18

203-26-41180

GEAR

19

203-26-41120

CASE

20

203-26-41150

GEAR

21

06040-06207

BEARING

22

04065-07225

RING,SNAP

23

203-26-41161

GEAR

24

203-26-41130

COVER

25

06030-21307

BEARING

26

01011-51450

BOLT

27

01011-51410

BOLT

28

01643-31445

WASHER

29

01010-51255

BOLT

30

01643-31232

WASHER

31

04020-01434

PIN,DOWEL

32

04020-01024

PIN,DOWEL

33

07049-02025

PLUG

34

07049-01215

PLUG

35

07042-30617

PLUG

36

07323-30600

ELBOW

37

20G-26-11310

FILLER

38

20G-26-11320

GAUGE

39

07042-30108

PLUG

40

01010-52060

BOLT

41

01643-32060

WASHER

42

04020-01638

PIN,DOWEL
