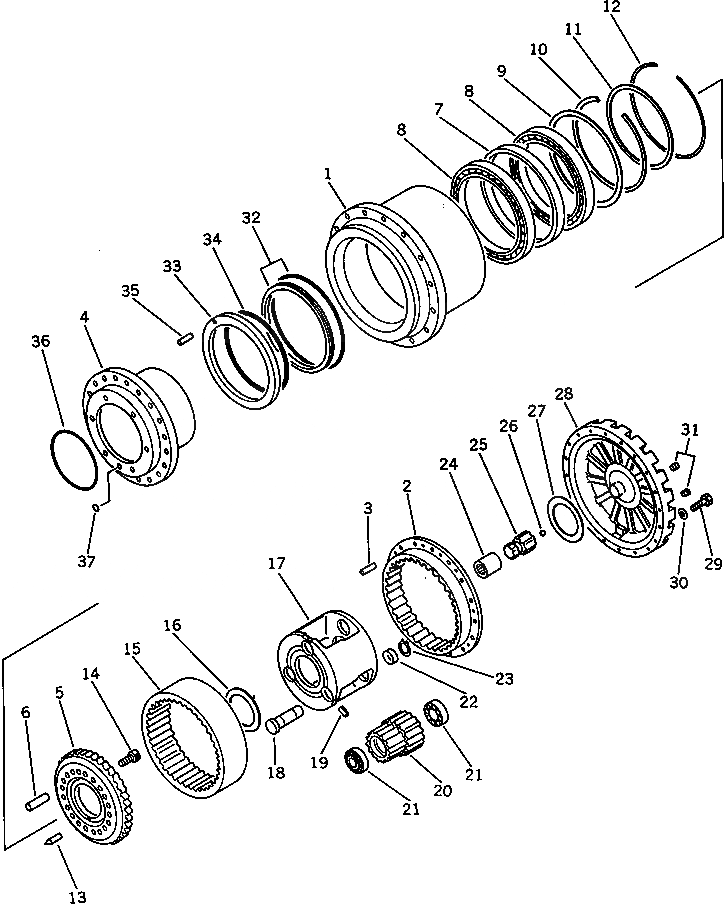

Запчасти Komatsu PC100L-3 МОТОР ХОДА (/) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

204-60-00101

TRAVEL MOTOR ASS'Y

|$1

TZ461F1101-00

HUB KIT

|$2

TZ461F1131-00

HUB ASS'Y

1

HUB

2

GEAR,RING

3

TZJB1354-12-32

PIN

|$6

TZ465F1102-00

SPINDLE KIT

|$7

TZ465F1132-00

SPINDLE ASS'Y

4

SPINDLE

5

GEAR,COUPLING

6

TZ461F1019-00

PIN

7

TZ461F1010-00

COLLAR

8

TZ200F1033-00

BEARING,BALL

9

TZ461F1011-00

PIECE,DISTANCE

10

TZ461F1016-00

RING,SNAP

11

TZ461F1012-00

PIECE,DISTANCE

12

TZ420F1015-00

RING

13

TZ43E1020-01

PIN

14

TZ461F1044-00

BOLT

15

TZ420F1005-00

GEAR,RING

16

TZ10F1030-00

BEARING,THRUST

|$21

TZ461F1103-00

CARRIER KIT

17

TZ461F1003-00

CARRIER

18

TZ400F1009-00

SHAFT

19

TZJB2808-6-12

PIN,SPRING

20

TZ461F1006-00

GEAR

21

TZ461F1032-00

BEARING

22

TZ38E1014-00

BUSHING

23

TZJB2804-S40

RING,SNAP

24

TZ220F1024-00

COUPLING

25

TZ400F1007-00

GEAR,SUN

26

04260-01111

BALL

27

TZ10F1031-00

METAL,THRUST

28

TZ400F1013-00

COVER

29

01010-31250

BOLT

30

TZSW-M12

WASHER,LOCK

31

TZGM1-2

PLUG

32

TZES100-209-A

SEAL,FLOATING (KIT)

33

TZ10F1027-00

PIECE,DISTANCE

34

TZJW1516-G46-9

O-RING (KIT)

35

TZJB2808-5-10

PIN,SPRING

36

TZJW1516-G41-9

O-RING (KIT)

37

07000-11106

O-RING (KIT)
