Запчасти Komatsu PC100L-3 МАРКИРОВКА (ДЛЯ WRIST УПРАВЛ-Е) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

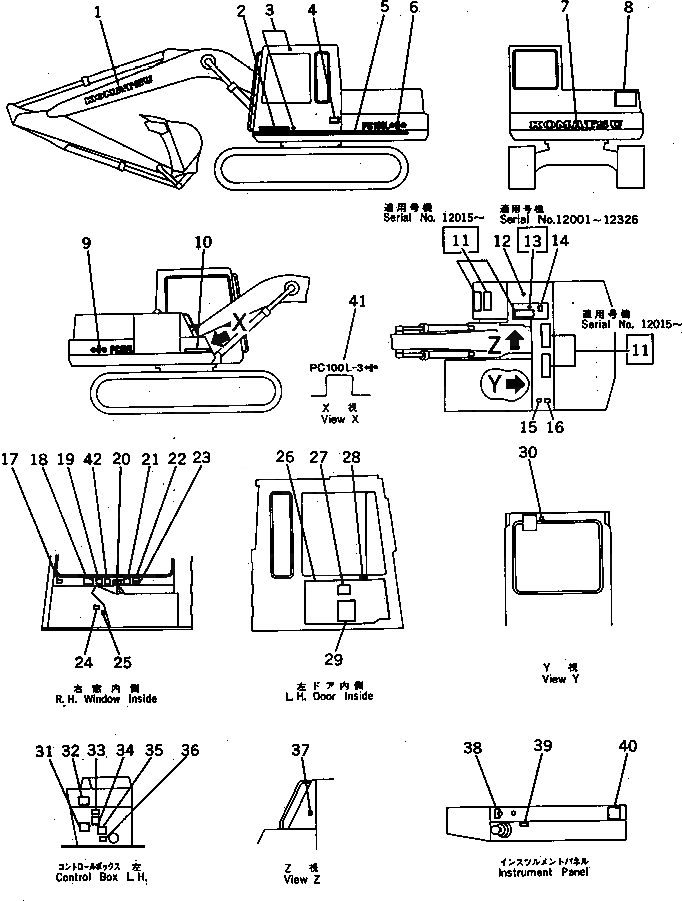

Схема запчастей Komatsu PC100L-3 - МАРКИРОВКА (ДЛЯ WRIST УПРАВЛ-Е) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

1

09690-41250

PLATE, MARK,KOMATSU

2

09690-50500

PLATE, MARK,KOMATSU

3

205-00-63770

PLATE

4

09602-01643

PLATE, NAME,(LIMITED SUPPLY)

4

01220-60408

SCREW

4

01601-20410

WASHER,SPRING

5

142-54-16170

STRIPE

5

203-00-41140

PLATE, STRIPE,STRIPE

6

204-00-31121

PLATE, MARK,PC100L L.H.

7

203-00-41131

PLATE, MARK,KOMATSU

8

09133-00100

PLATE, SAFETY,KEEP OUT OF TURNING AREA

9

204-00-31131

PLATE, MARK,PC100L R.H.

10

09690-50500

PLATE, MARK,KOMATSU

11

154-54-23260

SEAT,NONSKID

12

09652-01121

PLATE, CAUTION,FUEL

12

09669-00002

PLATE, CAUTION,FUEL

13

09669-00003

PLATE, CAUTION,HYDRAULIC OIL TANK

14

09653-00110

PLATE, SAFETY,HYDRAULIC TANK CAP

14

09653-00100

PLATE, SAFETY,HYDRAULIC TANK CAP

15

09668-00100

PLATE, SAFETY,RADIATOR CAP

16

205-00-65150

PLATE, CAUTION,RADIATOR

16

09650-01103

PLATE, INSTRUCTION,RADIATOR

17

205-00-52192

PLATE, CAUTION

18

205-00-71291

PLATE, OPERATING

18

205-00-71290

PLATE, OPERATING

19

205-00-71350

PLATE, OPERATING

20

205-00-63540

PLATE, CAUTION

21

205-00-63250

PLATE, CAUTION

22

09649-00101

PLATE, INSTRUCTION

23

203-00-31330

PLATE, OPERATING

24

09131-00100

PLATE, SAFETY,SWING LOCK LEVER

25

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

26

203-54-41651

COVER

26

203-54-41650

COVER

27

203-00-21131

PLATE, SAFETY

28

205-00-71340

PLATE, OPERATING,DOOR LOCK

29

203-00-41151

CHART, OIL

29

203-00-41150

CHART, OIL

30

205-00-63230

PLATE, CAUTION,INSPECTION AND MAINTENANCE

31

204-00-31111

PLATE, DATA

31

204-00-31110

PLATE, DATA

32

203-00-31320

PLATE, CAUTION

33

09651-00100

PLATE, SAFETY,BEFORE OPERATING

34

09173-00100

PLATE, SAFETY

35

09667-00100

PLATE, SAFETY

36

203-00-41180

PLATE, OPERATING

37

203-00-31120

PLATE, INSTRUCTION,HYDRAULIC OIL TANK

38

09683-01060

PLATE, OPERATING

39

09685-00001

PLATE, OPERATING,SAFETY LOCK LEVER

40

203-00-41250

PLATE, OPERATING

41

21K-00-22170

PLATE, MARK

42

203-00-41520

PLATE, CAUTION

Выбрано товаров: 52
