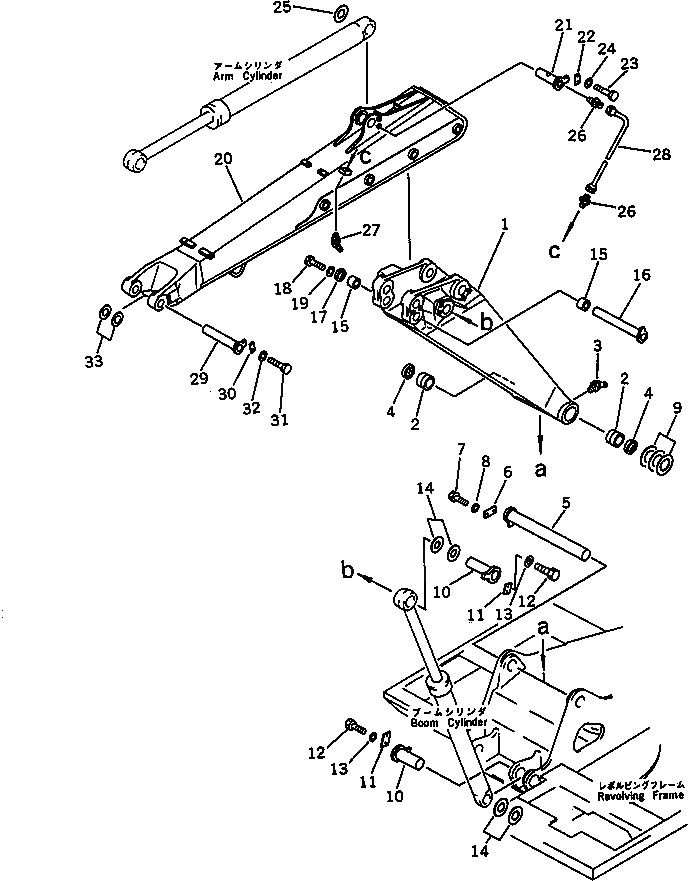

Запчасти Komatsu PC100L-3 2-СЕКЦИОНН. СТРЕЛА РАБОЧЕЕ ОБОРУДОВАНИЕ

1

20E-70-11111

BOOM,FOOT

2

203-70-41411

BUSHING

3

07020-00675

FITTING,GREASE

4

07145-00070

SEAL,DUST

5

203-70-41132

PIN

6

205-70-66580

PLATE

7

01010-51230

BOLT

8

01643-31232

WASHER

9

203-70-34270

SPACER, 0.5MM

9

203-70-11210

SPACER, 1.0MM

9

203-70-11220

SPACER, 2.0MM

10

203-70-41391

PIN

11

205-70-66580

PLATE

12

01010-51230

BOLT

13

01643-31232

WASHER

14

203-70-41460

SPACER, 1.0MM

14

203-70-41470

SPACER, 2.0MM

15

20E-70-11160

BUSHING

16

20E-70-11150

PIN

17

20G-70-11280

HOLDER

18

01010-51440

BOLT

19

01643-31445

WASHER

20

20E-70-11201

BOOM,TOP

21

203-70-41192

PIN

22

205-70-66580

PLATE

23

01010-51230

BOLT

24

01643-31232

WASHER

25

203-70-24170

SPACER, 1.0MM

26

07214-60610

CONNECTOR

27

07020-00675

FITTING,GREASE

28

202-70-11410

TUBE

29

203-70-41311

PIN

29

203-70-41310

PIN

30

205-70-66580

PLATE

31

01010-51230

BOLT

32

01643-31232

WASHER

33

203-70-34270

SPACER, 0.5MM

33

203-70-11210

SPACER, 1.0MM
