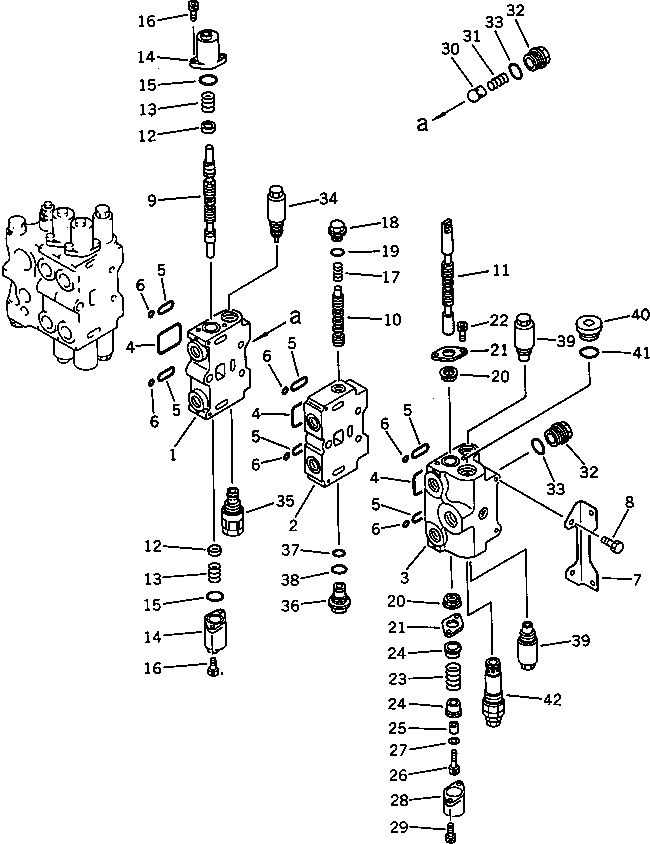

Запчасти Komatsu PC100L-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ WRIST УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-85-27000

CONTROL VALVE ASS'Y,R.H.

1

BLOCK,VALVE

2

BLOCK,VALVE

3

BODY,VALVE

4

07000-13050

O-RING

5

07000-03030

O-RING

6

07000-01007

O-RING

7

700-84-11330

BRACKET

8

01010-51020

BOLT

9

SPOOL,BUCKET

10

SPOOL

11

SPOOL,R.H. TRAVEL

12

700-84-13781

RETAINER

13

700-84-13770

SPRING

14

700-84-12510

CASE

15

700-84-11240

O-RING

16

01252-30616

BOLT

17

700-84-13880

SPRING

18

700-84-13870

PLUG

19

07002-02434

O-RING

20

700-84-13910

SEAL

21

700-84-13891

PLATE

22

01252-30612

BOLT

23

700-84-11650

SPRING

24

700-84-13711

RETAINER

25

700-84-11640

COLLAR

26

01252-30830

BOLT

27

01643-30823

WASHER

28

700-84-11390

COVER

29

01253-30625

BOLT

30

700-42-31460

VALVE

31

700-42-31470

SPRING

32

700-84-11320

PLUG

33

07002-13034

O-RING

34

700-81-63001

VALVE ASS'Y,SUCTION AND SAFETY

35

700-81-74001

VALVE ASS'Y,SAFETY

36

700-84-13510

NIPPLE

37

07000-02015

O-RING

38

07002-02434

O-RING

39

700-81-81000

VALVE ASS'Y,SUCTION

40

07040-13316

PLUG

41

07002-13334

O-RING

42

700-86-55001

VALVE ASS'Y,RELIEF
