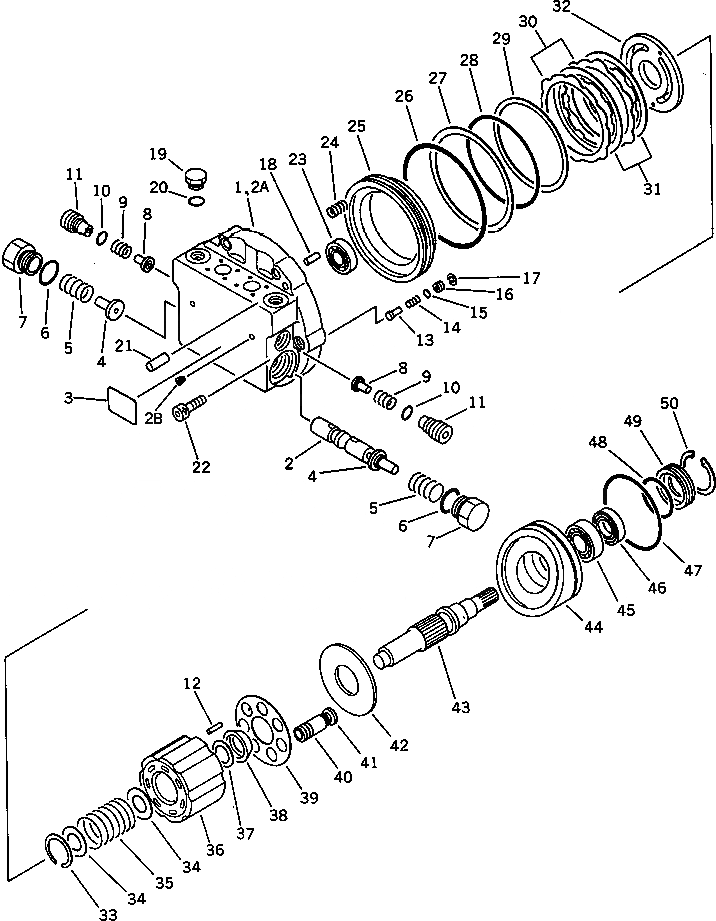

Запчасти Komatsu PC100L-3 МОТОР ХОДА (/) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА
№
Артикул
Название
Примечание
Количество
|1
204-60-00101
TRAVEL MOTOR ASS'Y
|1
TZ150A210101-A
FLANGE-SPOOL ASS'Y
1
FLANGE,REAR
2
SPOOL
2A
TZMB700-050
PLUG
2B
TZGM1-8
PLUG
3
TZ850A0006-00
PLATE¤ NAME
4
TZ100A2052-00
STOPPER
5
TZ100A2055-00
SPRING
6
07000-13032
O-RING (KIT)
7
TZ100A2051-00
PLUG
8
TZ100A2054-01
VALVE
9
TZ100A2057-01
SPRING
10
07000-12020
O-RING (KIT)
11
TZ100A2053-01
PLUG
12
TZJB1354-3-30
PIN
13
TZ430F2019-00
VALVE
14
TZ100A2020-00
SPRING
15
07000-11009
O-RING (KIT)
16
TZ100A2018-00
SEAT,VALVE
17
TZ100A2022-00
RING
18
TZJB1354-5-12
PIN
19
TZ100A2021-00
PLUG
20
07002-02034
O-RING (KIT)
21
TZJB1354-10-28
PIN
22
01252-31440
BOLT
23
06000-06005
BEARING,BALL
24
TZ100A2013-00
SPRING
25
TZ231F2012-00
PISTON
26
07000-15170
O-RING (KIT)
27
TZSUN-2BG170
RING,BACK-UP (KIT)
28
07000-15145
O-RING (KIT)
29
TZ231F2023-00
RING,BACK-UP (KIT)
30
TZ100A2016-00
PLATE
31
TZ200A2015-00
DISC
32
TZ210A2009-00
PLATE,TIMING
33
TZIRTW-55
RING,SNAP
34
TZ150A2010-00
WASHER
35
TZ461F2028-01
SPRING
36
TZ430F2020-00
BLOCK,CYLINDER
37
TZ100A2011-00
WASHER KIT
38
TZ100A2008-00
BALL,THRUST
39
TZ100A2007-00
PLATE,RETAINER
|40
TZ200A2105-00
PISTON KIT
|40
PISTON ASS'Y
40
PISTON
41
SHOE
42
TZ430F2023-00
PLATE,THRUST
43
TZ430F2002-00
SHAFT
44
TZ461F200300-B
PLATE,SWASH
45
06000-06307
BEARING,BALL
46
TZTCN-32-52-11
SEAL,OIL (KIT)
47
07000-12125
O-RING (KIT)
48
07000-12075
O-RING (KIT)
49
TZ200F2004-00
COVER,BEARING
50
04065-08025
RING,SNAP
|51
TZ465F9000-00
SEAL KIT
|51
TZES100-209-A
SEAL,FLOATING
|51
TZJW1516-G46-9
O-RING
|51
TZJW1516-G41-9
O-RING
|51
07000-11106
O-RING
|51
07000-13032
O-RING
|51
07000-12020
O-RING
|51
07000-11009
O-RING
|51
07002-02034
O-RING
|51
07000-15170
O-RING
|51
07000-15145
O-RING
|51
TZSUN-2BG170
RING,BACK-UP
|51
TZ231F2023-00
RING,BACK-UP
|51
TZTCN-32-52-11
SEAL,OIL
|51
07000-12125
O-RING
|51
07000-12075
O-RING
Выбрано товаров: 72
