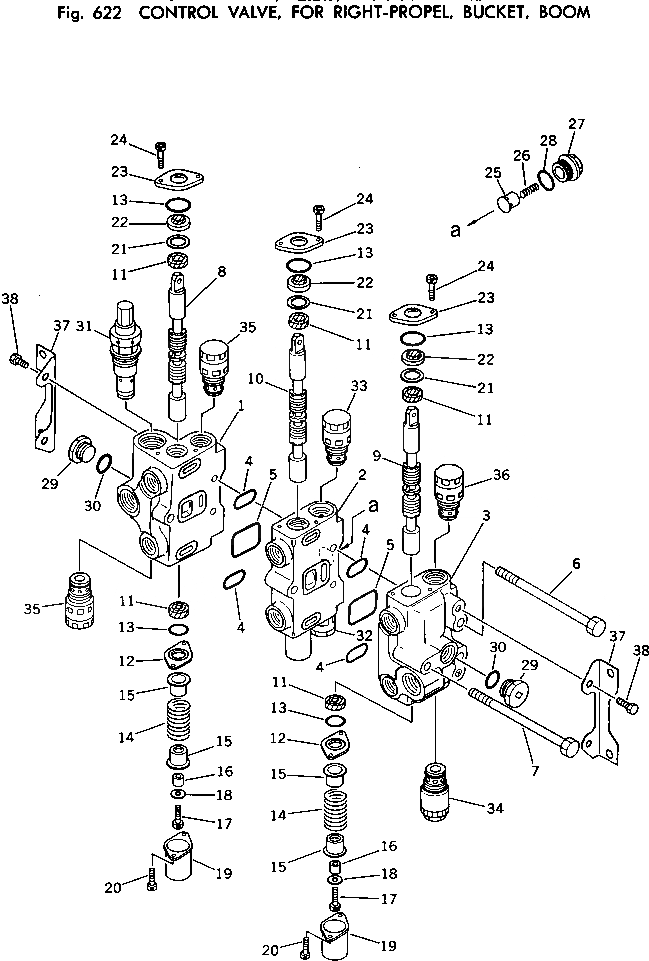

Запчасти Komatsu PC100L-2 УПРАВЛЯЮЩ. КЛАПАН¤ ДЛЯ ПРАВ.-PКАНАТL¤КОВШ¤СТРЕЛА ГИДРАВЛИКА

|$0

700-83-17004

VALVE ASS'Y

1

BODY,VALVE

2

BLOCK,VALVE

3

COVER,VALVE

4

07000-03030

O-RING

5

07000-13050

O-RING

6

700-83-11212

BOLT

7

700-83-11222

BOLT

8

SPOOL

9

SPOOL

10

SPOOL

11

700-84-11232

PACKING

12

700-84-11620

PLATE

13

700-84-11240

O-RING

14

700-84-11650

SPRING

15

700-84-11630

RETAINER

16

700-84-11640

COLLAR

17

01252-30830

BOLT

18

01643-30823

WASHER

19

700-84-11390

COVER

20

01252-30620

BOLT

21

700-84-11290

COLLAR

22

700-84-11820

SEAL,DUST

23

700-84-11310

PLATE

24

01252-30620

BOLT

25

700-42-31460

VALVE

26

700-42-31470

SPRING

27

700-84-11320

PLUG

28

07002-13034

O-RING

29

700-22-11370

PLUG

30

07002-12434

O-RING

31

700-80-51000

VALVE ASS'Y,MAIN RELIEF

32

700-80-72000

VALVE ASS'Y,SAFETY

33

700-80-66002

VALVE ASS'Y,SAFETY AND SUCTION

34

700-80-73000

VALVE ASS'Y,SAFETY

35

700-80-75000

VALVE ASS'Y,SUCTION

36

700-80-79000

VALVE ASS'Y,SAFETY AND SUCTION

37

700-84-11330

BRACKET

38

01010-51020

BOLT
