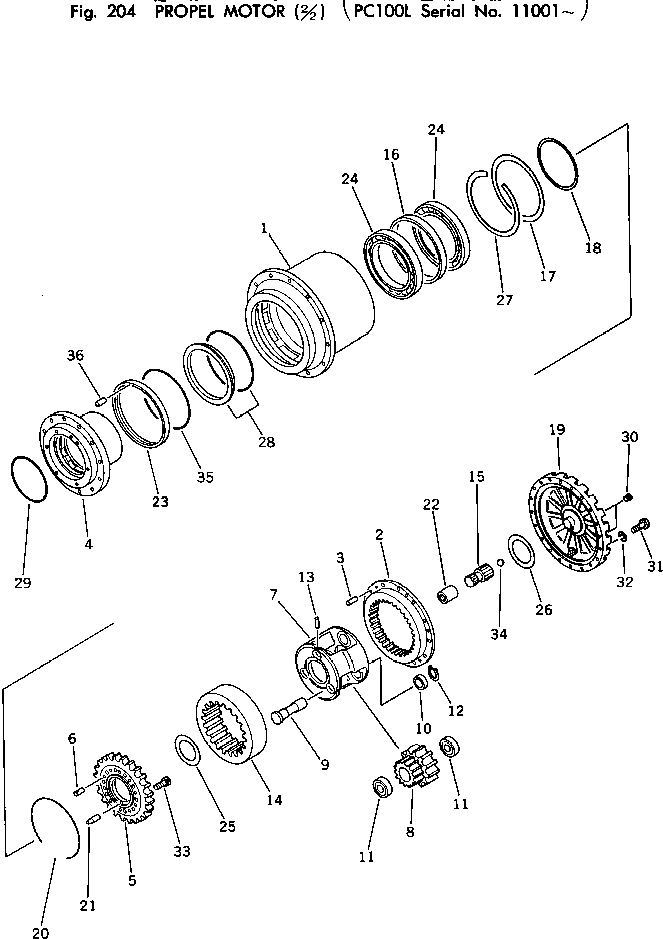

Запчасти Komatsu PC100L-2 PКАНАТL МОТОР (/) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

204-60-00100

MOTOR ASS'Y

|$2

TZ400F1101-00

HUB ASS'Y

1

HUB

2

GEAR

3

PIN

|$6

TZ430F1102-00

SPINDLE ASS'Y

4

SPINDLE

5

GEAR

6

PIN

7

TZ400F1003-00

CARRIER

|$11

TZ420F1006-00

GEAR ASS'Y

8

GEAR ASS'Y

|$13

TZ400F1009-00

SHAFT

9

SHAFT

10

TZ38E1014-00

BUSHING

|$16

TZ400F1032-00

BEARING ASS'Y

11

BEARING ASS'Y

12

04064-04016

RING

13

TZSP0060-12

PIN

13

TZJB2808-6-12

PIN

14

TZ420F1005-00

GEAR

15

TZ400F1007-00

GEAR

16

TZ43E1010-00

COLLAR

17

TZ43E1011-00

PIECE,DISTANCE

18

TZ43E1012-00

PIECE,DISTANCE

19

TZ400F1013-00

COVER

20

TZ420F1015-00

RING

21

TZ43E1020-01

PIN

22

TZ220F1024-00

COUPLING

23

TZ10F1027-00

PIECE,DISTANCE

24

TZ200F1033-00

BEARING,THRUST

25

TZ10F1030-00

BEARING,THRUST

26

TZ10F1031-00

METAL

27

TZ400F1016-00

RING

28

TZ20923442

SEAL (KIT)

29

TZOWG-13184

O-RING (KIT)

30

TZHP00001-2

PLUG

31

01010-31250

BOLT

32

TZSW001220

WASHER

33

01252-31430

BOLT

34

TZSR0007-16

BALL

35

TZOWG13216

O-RING (KIT)

36

TZSP0050-10

PIN
