Запчасти Komatsu PC100L-2 PКАНАТL МОТОР (/) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

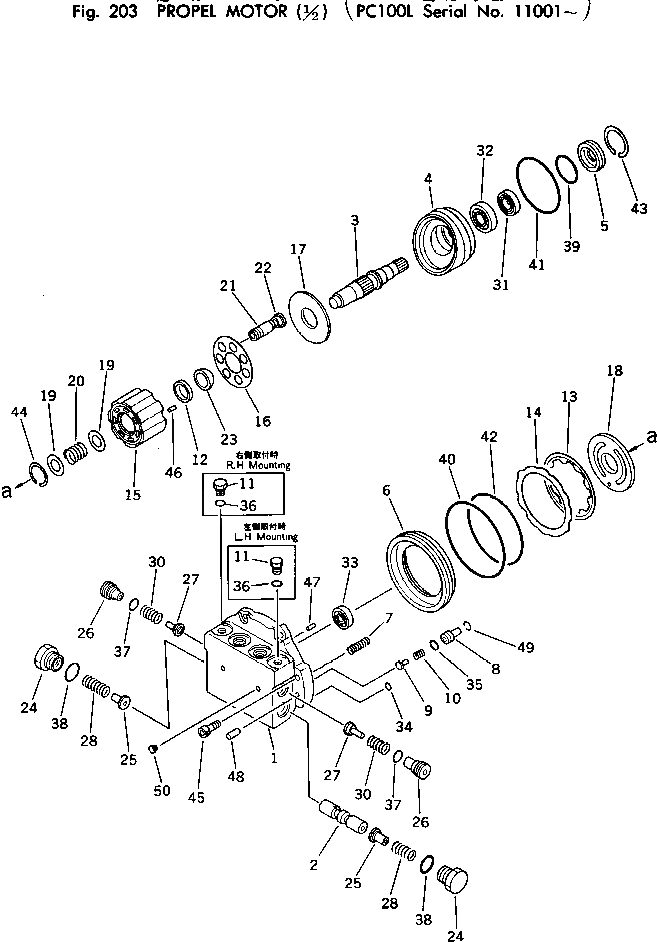

Схема запчастей Komatsu PC100L-2 - PКАНАТL МОТОР (/) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

Артикул

Название

Примечание

Количество

|$0

204-60-00100

MOTOR ASS'Y

|$2

TZ43F2101-00A

FLANGE SPOOL ASS'Y

1

FLANGE ASS'Y

2

SPOOL

3

TZ430F2002-00

SHAFT

4

PLATE

5

TZ200F2004-00

COVER

6

TZ100A2012-01

PISTON

7

TZ100A2013-00

SPRING

8

TZ100A2018-00

SEAT

9

TZ430F2019-00

VALVE

10

TZ100A2020-00

SPRING

11

TZ100A2021-00

PLUG

12

TZ100A2011-00

WASHER KIT

13

TZ100A2015-00

DISC

14

TZ100A2016-00

PLATE

15

TZ430F2020-00

BLOCK

16

TZ100A2007-00

PLATE

17

TZ430F2023-00

PLATE

18

TZ100A2009-00

PLATE

19

TZ100A2010-00

WASHER

20

TZ430F2028-00

SPRING

20

TZ430F2102-00

PISTON ASS'Y

21

PISTON

22

SHOE

23

TZ100A2008-00

BALL

24

TZ100A2051-00

PLUG

25

TZ100A2052-00

STOPPER

26

TZ100A2053-01

PLUG

27

TZ100A2054-01

VALVE

28

TZ100A2055-00

SPRING

30

TZ100A2057-01

SPRING

31

TZ03205211

SEAL (KIT)

32

06000-06307

BEARING

33

06000-06005

BEARING

34

07000-11006

O-RING (KIT)

35

07000-11009

O-RING (KIT)

36

07002-12034

O-RING (KIT)

37

07000-12020

O-RING (KIT)

38

07000-13032

O-RING (KIT)

39

07000-12075

O-RING (KIT)

40

07000-15170

O-RING (KIT)

41

TZOWG-13127

O-RING (KIT)

42

07000-15145

O-RING (KIT)

43

04065-08025

RING

44

TZIRT05520

RING

45

01252-31035

BOLT

46

TZPP0030-30

PIN

47

TZPP0050-12

PIN

48

TZPP0100-28

PIN

49

TZ100A2022-00

RING

50

TZHP00001-8

PLUG

Выбрано товаров: 52
