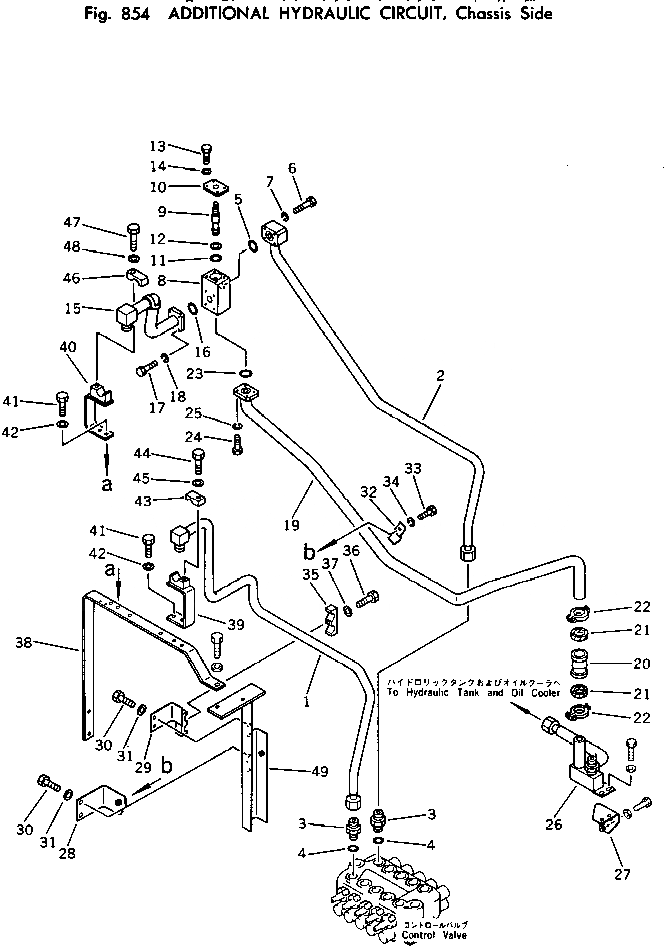

Запчасти Komatsu PC100L-2 ДОПОЛН. ГИДРАВЛ КОНТУР¤ ШАССИ ОПЦИОННЫЕ КОМПОНЕНТЫ

1

203-973-3221

TUBE

2

203-973-3211

TUBE

3

07230-10628

UNION

4

07002-12434

O-RING

5

07000-13030

O-RING

6

01010-51060

BOLT

7

01602-21030

WASHER,SPRING

|$7

203-973-3800

VALVE ASS'Y

8

203-973-3810

BODY

9

203-973-3820

SPOOL

10

20T-973-2640

PLATE

11

07000-13025

O-RING

12

07001-03025

RING,BACK-UP

13

01010-50820

BOLT

14

01643-20823

WASHER

15

203-973-3570

TUBE

16

07000-13030

O-RING

17

01010-51030

BOLT

18

01602-21030

WASHER,SPRING

19

203-973-3540

TUBE

20

07332-01000

COUPLING ASS'Y

21

07332-51000

GASKET

22

07332-61000

CLAMP

23

07000-13030

O-RING

24

01010-51030

BOLT

25

01602-21030

WASHER,SPRING

26

203-973-3270

TUBE

27

203-973-3290

BRACKET

28

203-973-3580

BRACKET

29

203-973-3241

BRACKET

30

01010-51225

BOLT

31

01643-31232

WASHER

32

20T-62-51620

CLIP

33

01010-51030

BOLT

34

01602-21030

WASHER,SPRING

35

15R-62-14620

CLAMP

36

01010-51240

BOLT

37

01643-31232

WASHER

38

203-973-3251

BRACKET

39

203-973-3550

BRACKET,L.H.

40

203-973-3560

BRACKET,R.H.

41

01010-51230

BOLT

42

01643-31232

WASHER

43

15R-62-18141

CLAMP

44

01010-51240

BOLT

45

01643-31232

WASHER

46

205-931-6130

CLAMP

47

01010-51245

BOLT

48

01643-31232

WASHER

49

203-973-3230

BRACKET
