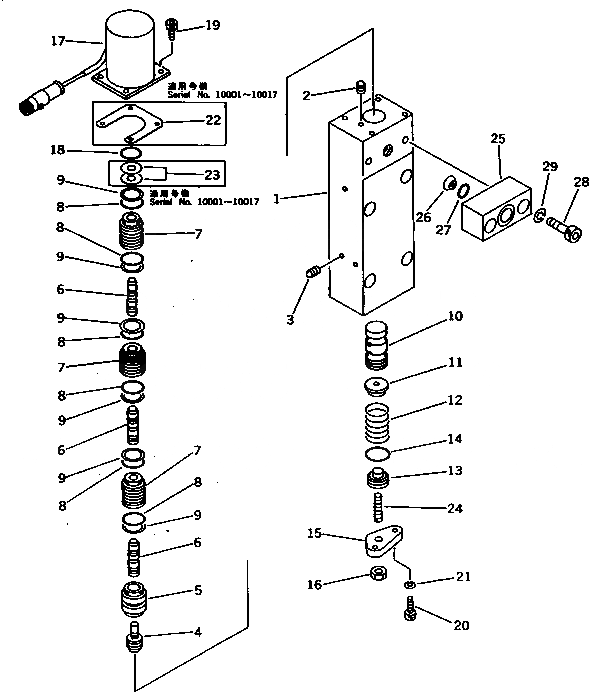

Запчасти Komatsu PC1000SP-1 ГИДР. НАСОС. NO. (TVC КЛАПАН) (/) (С -STAGE SELECTOR MODE OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

708-27-01084

HYDRAULIC PUMP ASS'Y

|$1

708-27-01083

HYDRAULIC PUMP ASS'Y

|$2

708-27-01082

HYDRAULIC PUMP ASS'Y

|$3

708-27-01081

HYDRAULIC PUMP ASS'Y

|$4

708-27-01080

HYDRAULIC PUMP ASS'Y,(HPV 160+160)

|$6

708-27-07271

SERVO VALVE ASS'Y,REAR

|$7

708-27-07270

SERVO VALVE ASS'Y,REAR

|$9

708-27-07771

VALVE ASS'Y,TVC

|$10

708-27-07770

VALVE ASS'Y,TVC

|$11

708-23-00320

BODY ASS'Y

1

BODY

2

PLUG

3

EXPANDER

4

708-23-18120

PISTON

5

708-23-18130

SLEEVE

6

708-25-58160

PISTON

6

708-25-58140

PISTON

7

708-25-58150

SLEEVE

8

07000-12016

O-RING

9

07001-02016

RING,BACK-UP

10

708-23-18161

SPOOL

11

708-23-18170

SEAT

12

708-23-18181

SPRING

13

708-23-15160

PLUG

14

07000-02018

O-RING

15

708-23-18210

COVER

16

01580-10806

NUT

17

708-23-18221

SOLENOID ASS'Y

18

07000-02016

O-RING

19

708-23-18250

BOLT

20

708-25-15320

BOLT

21

01602-20619

WASHER,SPRING

22

708-25-18571

SHIM, 0.50MM

23

708-25-18580

SHIM, 0.50MM

24

708-25-15340

SCREW

25

708-25-58310

FLANGE

26

720-68-11920

FILTER

27

07000-12010

O-RING

28

708-25-58320

BOLT

29

01602-20825

WASHER,SPRING
