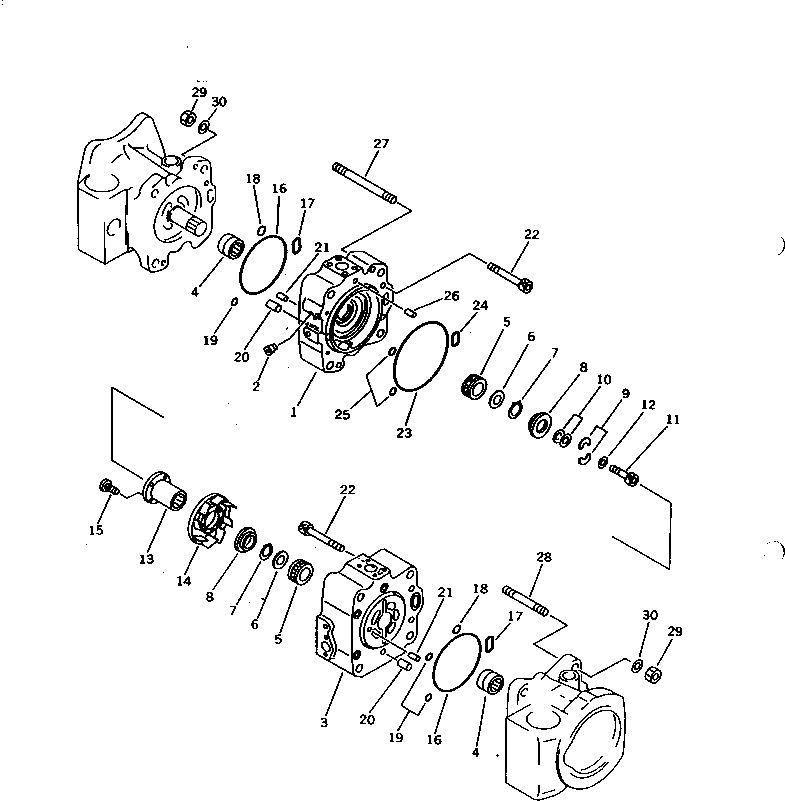

Запчасти Komatsu PC1000SP-1 ГИДР. НАСОС.¤ ПОВОРОТН. (НАСОС /) (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
708-25-02081
PUMP ASS'Y,(HPV 90+90)
|1
708-25-02080
PUMP ASS'Y,(HPV 90+90)
|1
708-25-04180
PUMP SUB ASS'Y
|1
708-25-51201
PUMP SUB ASS'Y
|1
708-25-00660
END CAP ASS'Y,FRONT
|1
708-25-00340
END CAP ASS'Y,FRONT
1
CAP,FRONT
|1
CAP,FRONT
2
PLUG
3
708-25-52590
CAP,END¤ REAR
|3
708-25-52540
CAP,END¤ REAR
4
708-2E-12260
BEARING
|4
708-25-12740
BEARING
5
06000-51106
BEARING
6
708-25-05140
WASHER KIT
|6
WASHER¤ 2.25MM
|6
WASHER¤ 2.55MM
|6
WASHER¤ 2.85MM
|6
WASHER¤ 3.15MM
|6
WASHER¤ 3.45MM
|6
WASHER¤ 3.75MM
7
708-25-52830
RING
8
708-25-52840
RETAINER
9
708-25-12950
PLATE
10
708-25-05020
SHIM KIT
|10
SHIM¤ 0.1MM
|10
SHIM¤ 0.15MM
|10
SHIM¤ 0.2MM
|10
SHIM¤ 0.5MM
11
706-74-40320
BOLT
12
01643-31032
WASHER
13
708-25-52550
COUPLING
14
708-25-12542
IMPELLER
15
706-73-42270
SCREW
16
07000-02135
O-RING
17
07000-03032
O-RING
18
07000-12015
O-RING
19
07000-11009
O-RING
20
6130-21-1910
PIN,DOWEL
21
720-68-19610
PIN,DOWEL
22
708-25-12530
BOLT
23
07000-05165
O-RING
24
07000-03032
O-RING
25
07000-11009
O-RING
26
720-68-19610
PIN,DOWEL
27
01141-81620
STUD
28
01140-81645
STUD
29
01582-01613
NUT
30
01643-31645
WASHER
Выбрано товаров: 49
