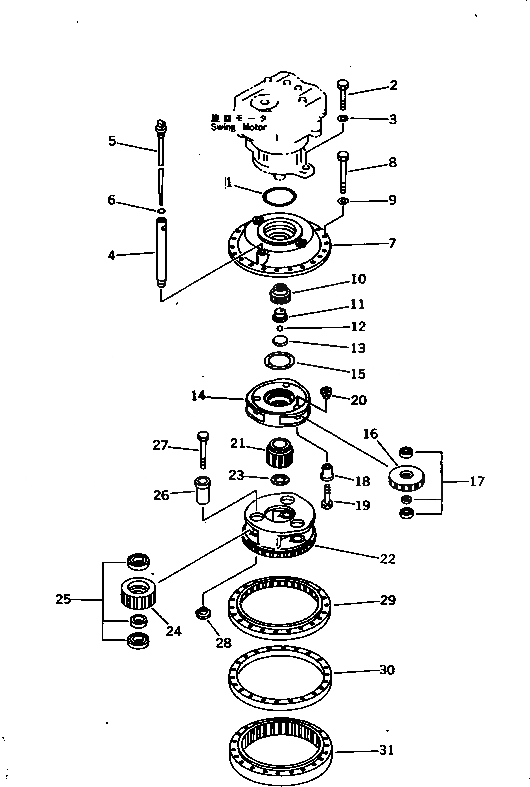

Запчасти Komatsu PC1000SE-1 МЕХАНИЗМ ПОВОРОТА¤ ПЕРЕДН. (/)(№78-) ПОВОРОТН. СИСТЕМА

1

07000-05150

O-RING

2

01010-52470

BOLT

3

01643-32460

WASHER

4

21N-26-11141

TUBE

5

21N-26-12240

GAUGE

6

07000-03022

O-RING

|$6

21N-26-00014

SWING MACHINERY A.

|$7

21N-26-00013

SWING MACHINERY A.

|$8

21N-26-00012

SWING MACHINERY A.

7

21N-26-12110

COVER

8

207-27-52341

BOLT

8

207-27-52340

BOLT

9

01643-31845

WASHER

10

21N-26-12130

GEAR

11

21N-26-12210

BLOCK

12

04260-01905

BALL

13

21N-26-12220

PLATE

14

21N-26-12180

CARRIER

15

20Y-27-11250

SPACER

15

205-27-71570

SPACER

16

21N-26-12140

GEAR

17

207-27-52320

BEARING,ROLLER

18

207-27-52250

PIN

19

01010-51060

BOLT

20

207-27-52260

HOLDER

21

207-27-52131

GEAR

22

207-27-52180

CARRIER

23

207-27-52270

SPACER

24

207-27-52140

GEAR

25

207-27-52220

BEARING,ROLLER, WITH SPACER

26

207-27-52240

PIN

27

01011-51805

BOLT

28

207-27-51241

HOLDER

29

21N-26-12151

GEAR

29

21N-26-12150

GEAR

30

207-27-52290

SPACER

31

207-27-52150

GEAR
