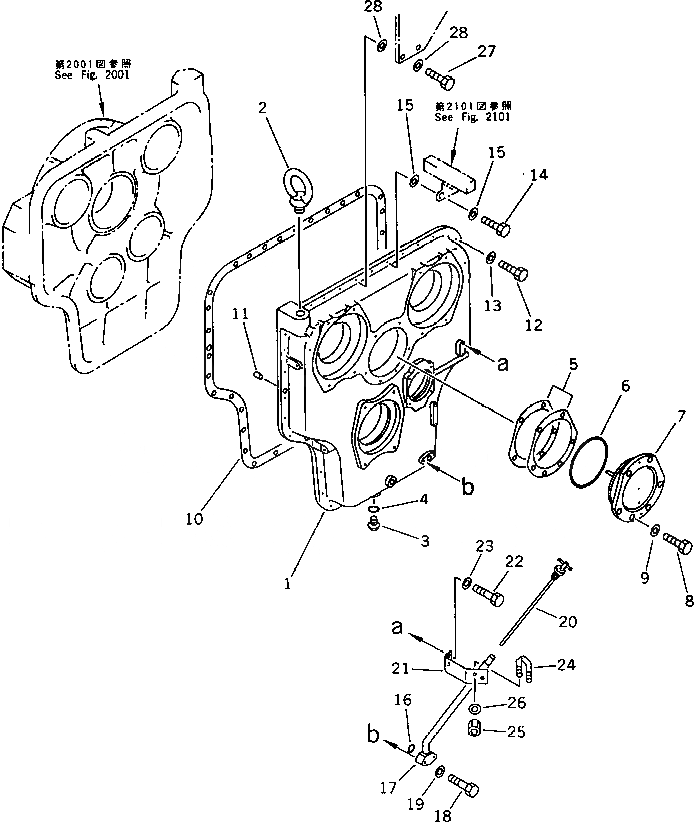

Запчасти Komatsu PC1000SE-1 МЕХ-М ОТБОРА МОЩНОСТИ (/)(№7-) ПОВОРОТН. СИСТЕМА

|$0

21N-38-00023

POWER TAKE OFF ASS'Y

|$1

21N-38-00022

POWER TAKE OFF ASS'Y

|$2

21N-38-00021

POWER TAKE OFF ASS'Y

|$3

21N-38-00020

POWER TAKE OFF ASS'Y

1

21N-38-11121

CASE

2

04530-13655

BOLT,EYE

3

07044-12412

PLUG

4

07002-32434

O-RING

5

21N-38-00010

SHIM ASS'Y

5

SHIM, 0.1MM

5

SHIM, 0.2MM

5

SHIM, 0.5MM

6

07000-35200

O-RING

7

21N-38-11171

COVER

7

21N-38-11170

COVER

8

01010-81645

BOLT

9

01643-31645

WASHER

10

21N-38-11281

GASKET

10

21N-38-11280

GASKET

11

04020-01638

PIN,DOWEL

12

01010-81240

BOLT

13

01643-31232

WASHER

14

01010-81250

BOLT

15

01643-31232

WASHER

16

07000-33028

O-RING

17

21N-38-11221

TUBE

18

01010-81065

BOLT

19

01643-31032

WASHER

20

21N-38-11232

GAUGE

20

21N-38-11231

GAUGE

21

21N-38-11242

BRACKET

22

01010-81030

BOLT

23

01643-31032

WASHER

24

07283-22746

CLIP

25

01599-01011

NUT

26

01643-31032

WASHER

27

01010-81260

BOLT

28

01643-31232

WASHER
