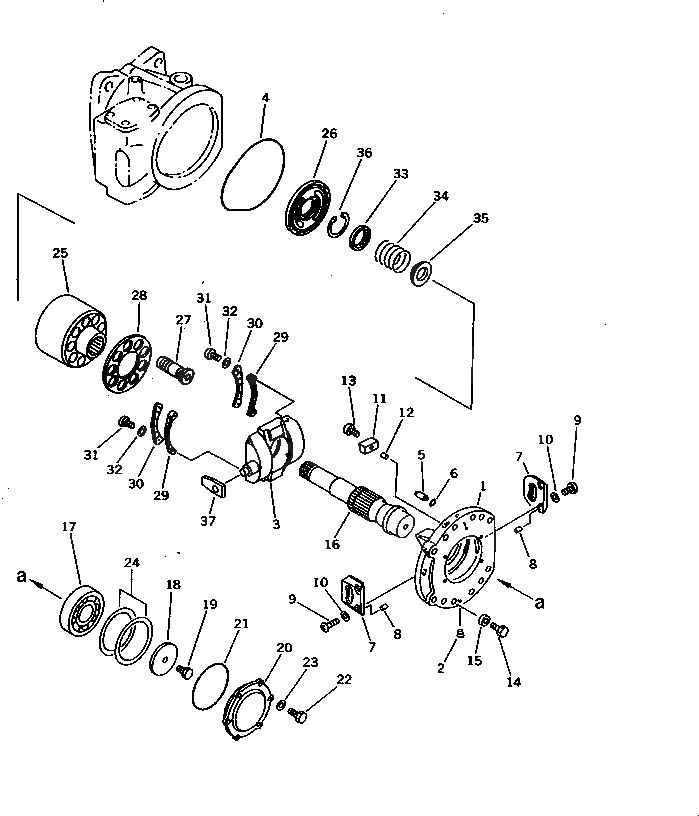

Запчасти Komatsu PC1000SE-1 ГИДР. НАСОС. NO. (НАСОС /) (/) (С -STAGE SELECTOR MODE OLSS)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

708-27-04090

HYDRAULIC PUMP ASS'Y

|$2

708-27-01283

PUMP SUB ASS'Y

|$4

708-27-00032

CRADLE ASS'Y,REAR

|$5

708-27-00450

CRADLE SUB ASS'Y,REAR

1

CRADLE,REAR

2

PLUG

3

708-27-13412

CAM,ROCKER

4

708-27-12130

O-RING

5

708-25-12330

JOINT

6

07000-12015

O-RING

7

708-27-12330

PLATE

8

04020-00820

PIN,DOWEL

9

708-27-12340

SCREW

10

01643-30823

WASHER

11

708-27-12350

STOPPER

12

04020-00820

PIN,DOWEL

13

706-75-42270

SCREW

14

01010-51450

BOLT

15

20D-14-11510

WASHER

16

708-27-12721

SHAFT,REAR

17

708-27-12730

BEARING

18

708-27-12780

PLATE

19

708-27-14490

BOLT

20

708-27-12790

COVER

21

07000-02015

O-RING

22

01010-50820

BOLT

23

01643-30823

WASHER

24

708-27-05010

SHIM KIT

24

SHIM, 0.50MM

24

SHIM, 0.10MM

24

SHIM, 0.15MM

|$33

708-27-00293

CYLINDER BLOCK A.,REAR

25

708-27-13112

CYLINDER BLOCK

26

708-27-23212

VALVE PLATE

27

708-27-13314

PISTON SUB ASS'Y

28

708-27-13342

RETAINER,SHOE

29

708-27-05051

SPACER KIT

29

SPACER

29

SPACER

29

SPACER

30

708-27-13420

RETAINER

31

708-27-13480

SCREW

32

01643-30823

WASHER

33

708-27-13120

WASHER

34

708-27-13140

SPRING

35

708-27-13130

RETAINER

36

708-27-13150

RING,SNAP

37

708-27-14121

SLIDER
