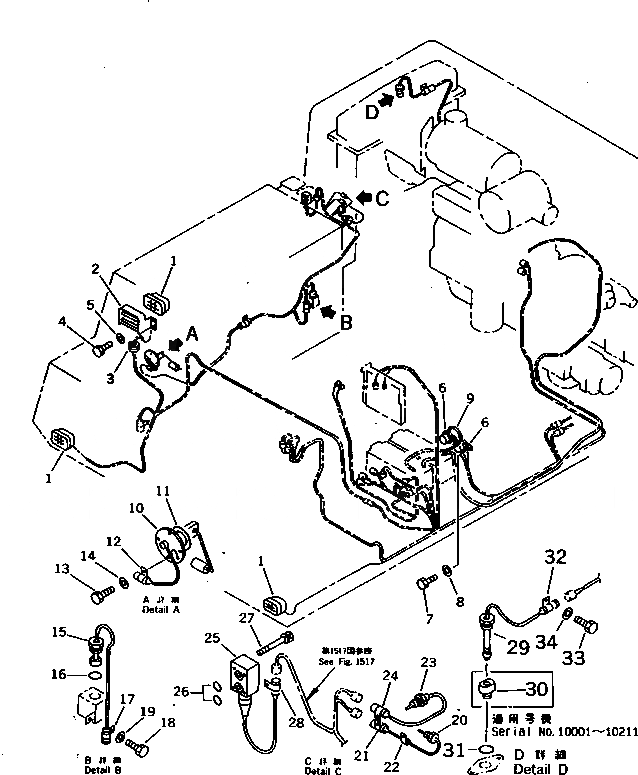

Запчасти Komatsu PC1000SE-1 ЭЛЕКТРИКА (КОМПОНЕНТЫ) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

203-06-56140

LAMP ASS'Y

1

22W-06-12381

LAMP ASS'Y

2

209-06-51650

COVER

3

08037-02512

GROMMET

4

01010-51225

BOLT

5

01643-31232

WASHER

6

08088-20000

SWITCH,BATTERY

7

01010-50820

BOLT

8

01643-30823

WASHER

9

08028-15011

WIRE, 110MM

10

7861-91-4700

SENSOR,FUEL LEVEL

11

07000-02085

O-RING

12

195-06-41820

CLIP

13

01010-51016

BOLT

14

01643-31032

WASHER

15

7861-91-4520

SENSOR,HYDRAULIC OIL LEVEL

16

07002-03634

O-RING

17

195-06-41820

CLIP

18

01010-51225

BOLT

19

01643-31232

WASHER

20

7861-99-3400

SENSOR,HYDRAULIC OIL TEMP (HIGH)

21

195-06-41810

CLIP

22

08036-11214

CLIP

23

21T-06-25510

SENSOR,HYDRAULIC OIL TEMP (LOW)

24

195-06-41820

CLIP

25

7830-11-3201

SENSOR

26

07000-02014

O-RING

27

01252-40640

BOLT

28

195-06-41820

CLIP

29

7861-99-4510

SENSOR,WATER LEVEL

30

21N-06-11410

ADAPTER

31

07002-03634

O-RING

32

195-06-41820

CLIP

33

01010-51016

BOLT

34

01643-31032

WASHER
