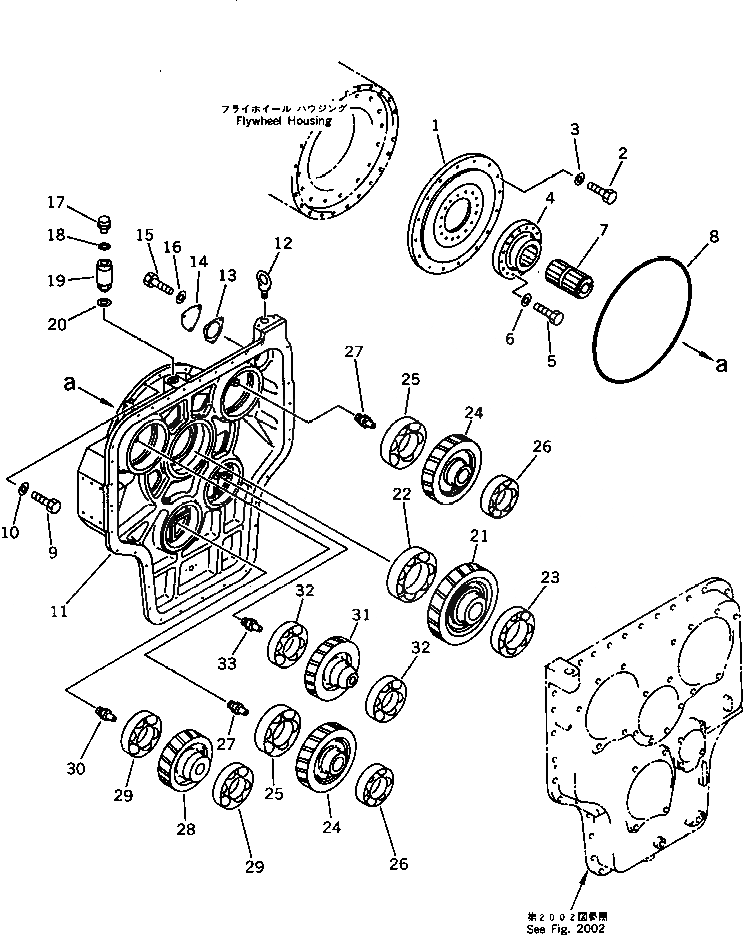

Запчасти Komatsu PC1000SE-1 МЕХ-М ОТБОРА МОЩНОСТИ (/) ПОВОРОТН. СИСТЕМА

1

21N-38-11130

PLATE

2

01010-81240

BOLT

3

01643-31232

WASHER

4

21N-38-11140

HUB

5

209-38-11280

BOLT

6

01643-31645

WASHER

7

21N-38-11150

SHAFT

8

07000-35500

O-RING

9

01010-81245

BOLT

10

01643-31232

WASHER

|11

21N-38-00023

POWER TAKE OFF ASS'Y

|11

21N-38-00022

POWER TAKE OFF ASS'Y

|11

21N-38-00021

POWER TAKE OFF ASS'Y

|11

21N-38-00020

POWER TAKE OFF ASS'Y

11

21N-38-11111

CASE

12

04530-13655

BOLT,EYE

13

6162-23-4890

GASKET

14

6162-23-4880

COVER

15

01010-81025

BOLT

16

01643-31032

WASHER

17

07030-03034

BREATHER

18

07005-03016

GASKET

19

209-38-11291

PLUG

20

07005-03016

GASKET

21

21N-38-11160

GEAR

22

209-38-51670

BEARING

|22

06002-32028

BEARING

23

209-38-51660

BEARING

|23

06002-32024

BEARING

24

21N-38-11180

GEAR

25

06030-06221

BEARING

26

06030-06218

BEARING

27

209-38-11270

NIPPLE

28

21N-38-11210

GEAR

29

06030-06219

BEARING

30

209-38-11270

NIPPLE

31

21N-38-11190

GEAR

32

06030-06219

BEARING

33

209-38-11270

NIPPLE
