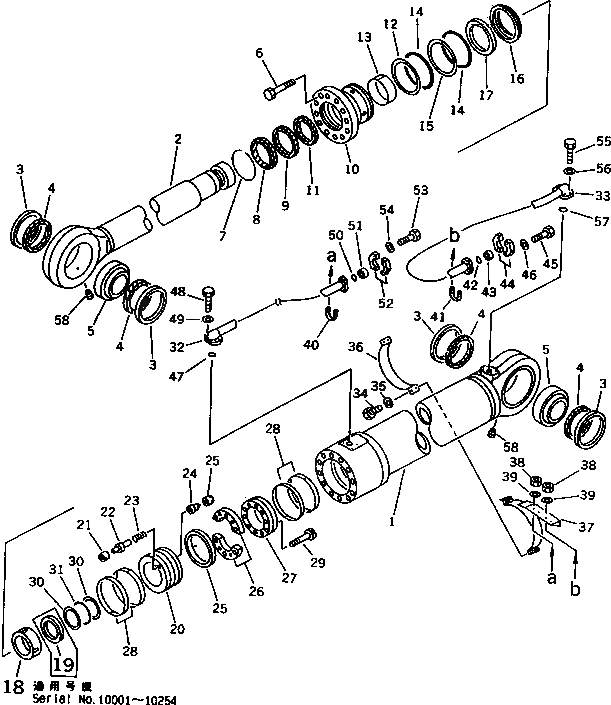

Запчасти Komatsu PC1000SE-1 ЦИЛИНДР СТРЕЛЫ РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)
№
Артикул
Название
Примечание
Количество
G-1
21N-63-X2011
CYLINDER GROUP,L.H.
|G
21N-63-X2010
CYLINDER GROUP,R.H.
G-2
21N-63-X2021
CYLINDER GROUP,R.H.
|G
21N-63-X2020
CYLINDER GROUP,R.H.
|1
21N-63-02011
CYLINDER ASS'Y
|1
21N-63-02010
CYLINDER ASS'Y
1
21N-63-52140
CYLINDER
2
21N-63-52120
ROD
3
21T-72-15860
BUSHING
4
21T-72-15870
SEAL,DUST (KIT)
5
707-46-14010
BUSHING
6
01010-83095
BOLT
7
07179-14180
RING,SNAP
|7
707-75-16012
RING,SNAP
8
566-63-22241
SEAL,DUST (KIT)
9
707-51-16130
PACKING,ROD (KIT)
10
707-28-22510
HEAD,CYLINDER
11
707-51-16630
RING,BUFFER (KIT)
12
707-35-92300
RING,BACK-UP (KIT)
13
707-52-91350
BUSHING
|13
707-52-11610
BUSHING
14
07000-15220
O-RING (KIT)
15
07001-05220
RING,BACK-UP (KIT)
16
707-71-31720
COLLAR
17
707-71-11710
RING
18
707-71-51732
PLUNGER
|18
707-71-51731
PLUNGER
19
707-40-22910
RETAINER
|20
707-91-02231
PISTON SUB ASS'Y
|20
707-91-02230
PISTON SUB ASS'Y
20
PISTON
|20
PISTON
21
SEAT
22
VALVE,PISTON
23
SPRING
24
VALVE,PISTON
25
707-44-22280
RING,PISTON (KIT)
|25
707-44-22080
RING,PISTON (KIT)
26
707-40-22970
SPACER
27
707-37-22030
PISTON
28
707-39-22820
RING,WEAR (KIT)
29
01252-31695
BOLT
30
707-35-91440
RING
31
07000-15135
O-RING,BACK-UP (KIT)
32
21N-62-18330
TUBE,L.H.
|32
21N-62-18340
TUBE,R.H.
33
21N-62-18310
TUBE,L.H.
|33
21N-62-18320
TUBE,R.H.
34
01010-51240
BOLT
35
01643-31232
WASHER
36
21N-62-18440
BAND
37
21N-62-18380
BRACKET
38
01599-01011
NUT
39
01643-31032
WASHER
40
07283-23442
CLIP
41
07283-24346
CLIP
42
07000-13048
O-RING (KIT)
43
07378-11410
HEAD
44
07371-51470
FLANGE
45
01010-51455
BOLT
46
01643-31445
WASHER
47
07000-13038
O-RING (KIT)
48
01010-51245
BOLT
49
01643-31232
WASHER
50
07000-13038
O-RING (KIT)
51
07378-11210
HEAD
52
07371-51260
FLANGE
53
01010-51245
BOLT
54
01643-31232
WASHER
55
01010-51450
BOLT
56
01643-31445
WASHER
57
07000-13048
O-RING (KIT)
58
07043-00108
PLUG
|59
707-99-78620
SERVICE KIT
Выбрано товаров: 74
