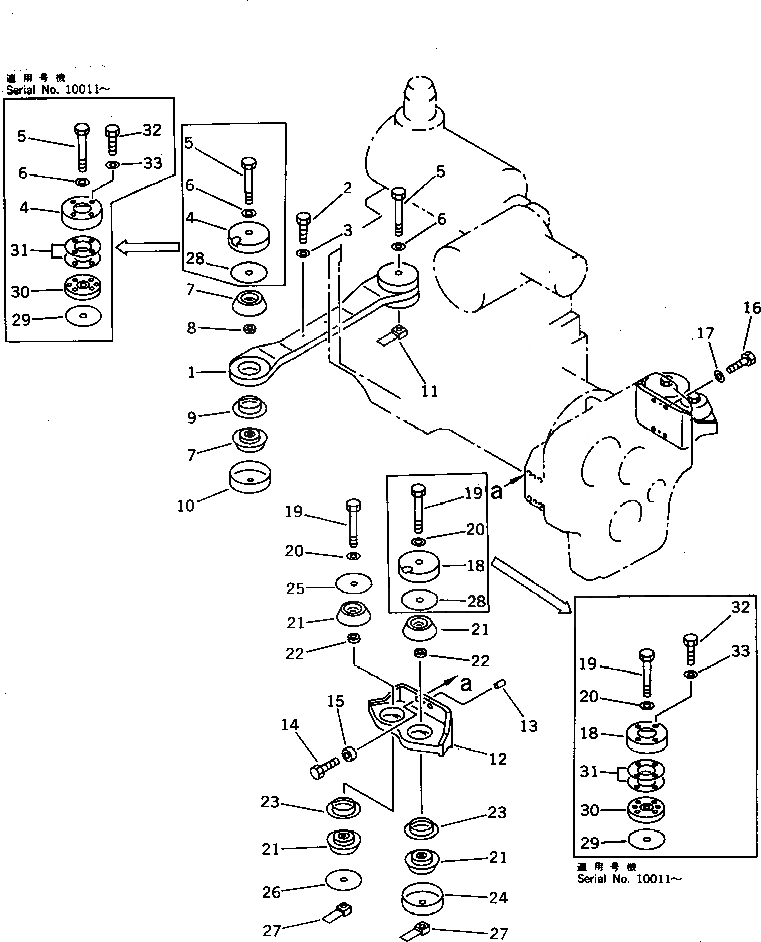

Запчасти Komatsu PC1000SE-1 КРЕПЛЕНИЕ ДВИГАТЕЛЯ КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

21N-01-11160

BRACKET

2

01010-51850

BOLT

3

19M-09-12870

WASHER

|3

01643-31845

WASHER

4

21N-01-11141

STOPPER

|4

21N-01-11140

STOPPER

5

208-01-11181

BOLT

6

01643-32460

WASHER

7

21N-01-11120

CUSHION

8

21T-01-11220

COLLAR

9

21T-01-11210

COLLAR

10

21N-01-11130

STOPPER

11

207-01-35190

SEAT

12

21N-01-11170

BRACKET,REAR

13

04020-01842

PIN

14

01010-52070

BOLT

15

21T-01-11130

WASHER

16

01010-52060

BOLT

17

01643-32060

WASHER

18

21N-01-11141

STOPPER

|18

21N-01-11140

STOPPER

19

208-01-11181

BOLT

20

01643-32460

WASHER

21

21N-01-11120

CUSHION

22

21T-01-11220

COLLAR

23

21T-01-11210

COLLAR

24

21N-01-11130

STOPPER

25

21N-01-11150

WASHER

26

21T-01-11190

WASHER

27

207-01-35190

SEAT

28

21N-01-11180

SHIM¤ 1.0MM

29

209-01-51210

SPACER

30

21N-01-11190

PLATE

31

21N-01-00010

SHIM KIT

|31

SHIM¤ 0.5MM

|31

SHIM¤ 1.0MM

32

01010-51645

BOLT

33

01643-31645

WASHER
