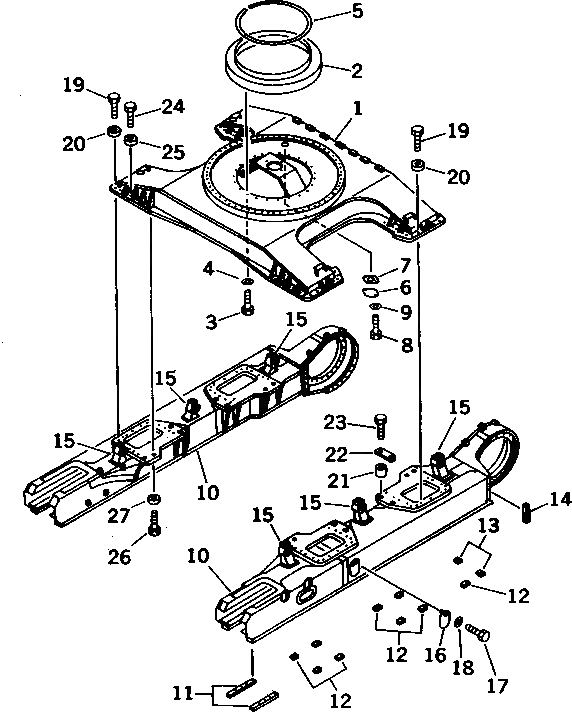

Запчасти Komatsu PC1000LC-1 ГУСЕНИЧНАЯ РАМА (С ПОЛН. ЗАЩИТА) ХОДОВАЯ

1

21N-30-12112

FRAME

1

21N-30-12111

FRAME

2

21N-30-11211

FRAME

3

01010-51255

BOLT

4

01643-31232

WASHER

5

21N-30-11220

SEAL

6

205-30-71181

COVER

7

205-30-71191

GASKET

8

01010-51225

BOLT

9

01643-31232

WASHER

10

21N-30-12690

FRAME,L.H.

10

21N-30-12710

FRAME,R.H.

11

21N-30-11620

SEAT (WELDED)

12

21N-30-11630

SEAT (WELDED)

13

21N-30-11640

SEAT (WELDED)

14

21N-30-12720

SEAT (WELDED)

15

21N-30-11150

SUPPORT (WELDED)

16

209-30-11220

PLATE

17

01010-51225

BOLT

18

01643-31232

WASHER

19

21N-30-11190

BOLT

20

21N-30-11170

SPACER

21

21N-30-11160

COLLAR

22

21N-30-11230

PLATE

23

21N-30-11180

BOLT

24

21N-30-11180

BOLT

25

21N-30-11171

SPACER

26

21N-30-11180

BOLT

27

21N-30-11170

SPACER
