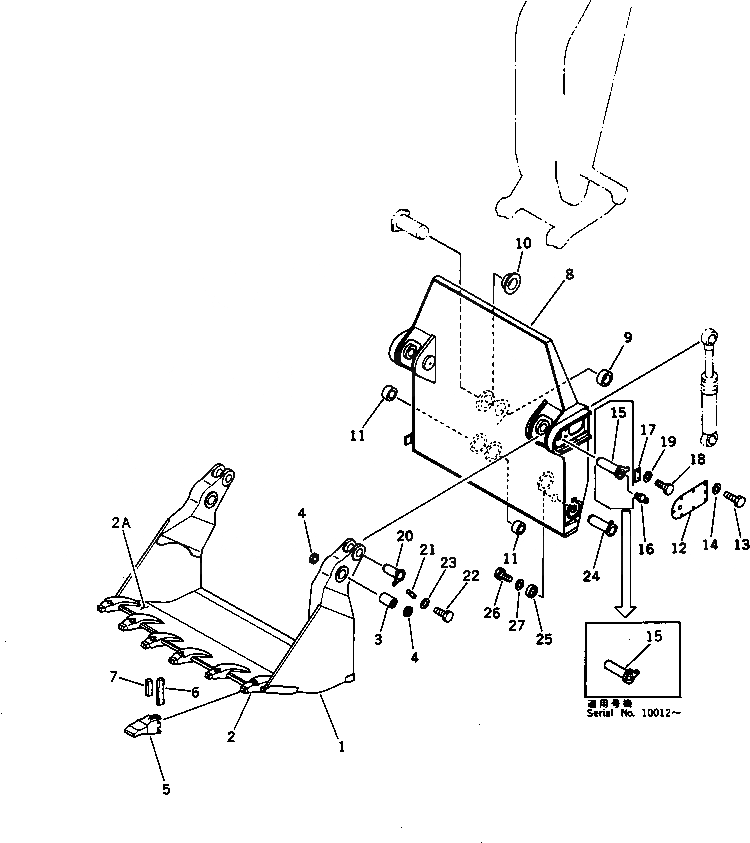

Запчасти Komatsu PC1000LC-1 КОВШ¤ .M (ВЕРТИКАЛЬН. ПАЛЕЦ) (ДЛЯ НИЖН. РАЗГРУЗКА) РАБОЧЕЕ ОБОРУДОВАНИЕ (ПОГРУЗ.)

G-1

21N-72-X4300

BUCKET GROUP,FRONT

1

21N-72-15121

BUCKET

1

21N-72-15120

BUCKET

2

21N-72-15130

ADAPTER (WELDED)

2A

21N-72-14130

PLATE (WELDED)

3

21N-72-14240

BUSHING

4

209-72-12211

SEAL

G-2

21N-72-X4400

TOOTH GROUP

5

21T-72-14480

POINT

6

21T-72-14460

PIN

7

21T-72-14470

LOCK

G-3

21N-72-X3100

BUCKET GROUP,REAR

8

21N-72-14112

BUCKET

8

21N-72-14111

BUCKET,REAR

9

21N-72-14180

BUSHING

10

21N-72-14190

BUSHING

11

21N-72-14220

BUSHING

12

21N-72-14250

COVER

13

01010-51235

BOLT

14

01643-31232

WASHER

G-4

21N-72-X3200

PIN GROUP

15

21N-72-14231

PIN

15

21N-72-14230

PIN

16

07020-00000

FITTING,GREASE

17

21N-70-11230

PLATE

17

207-70-11230

PLATE

18

01010-51640

BOLT

19

01643-31645

WASHER

20

209-72-54260

PIN

21

209-72-54390

PLATE

22

01010-51250

BOLT

23

01643-31232

WASHER

24

21N-72-14260

PIN

25

209-72-54250

HOLDER

26

01010-51235

BOLT

27

01643-31232

WASHER
