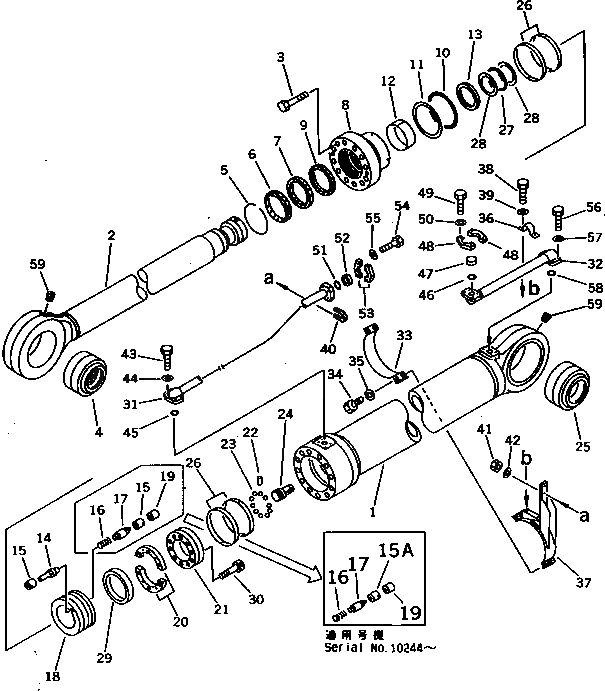

Запчасти Komatsu PC1000LC-1 ЦИЛИНДР РУКОЯТИ РАБОЧЕЕ ОБОРУДОВАНИЕ (ПОГРУЗ.)
№
Артикул
Название
Примечание
Количество
G-1
21N-63-X3031
CYLINDER GROUP,L.H.
G-1
21N-63-X3030
CYLINDER GROUP,L.H.
G-2
21N-63-X3041
CYLINDER GROUP,R.H.
G-2
21N-63-X3040
CYLINDER GROUP,R.H.
|$5
21N-63-03031
CYLINDER ASS'Y
|$6
21N-63-03030
CYLINDER ASS'Y
1
21N-63-66140
CYLINDER
2
21N-63-66120
ROD
3
01010-52485
BOLT
4
707-46-11520
BUSHING
5
07179-14140
RING,SNAP
5
707-75-13012
RING,SNAP
6
707-56-13520
SEAL,DUST (KIT)
7
707-51-13130
PACKING,ROD (KIT)
8
707-27-18510
HEAD,CYLINDER
9
707-51-13630
RING,BUFFER (KIT)
10
07000-15175
O-RING (KIT)
11
07001-05175
RING
12
707-52-91050
BUSHING
12
707-52-11310
BUSHING
13
707-40-18910
RETAINER
|$22
707-91-01841
PISTON SUB ASS'Y
|$23
707-91-01840
PISTON SUB ASS'Y
14
VALVE,PISTON
15
SEAT
15
SEAT
15A
SEAT
16
SPRING
17
VALVE,PISTON
18
PISTON
18
PISTON
19
707-71-91410
SPACER
20
707-40-18970
SPACER
21
707-37-18020
PISTON
22
707-71-91350
PIN
23
04260-01270
BALL
24
707-71-50390
PLUNGER
25
707-46-13010
BUSHING
26
707-39-18820
RING,WEAR (KIT)
27
07000-12110
O-RING (KIT)
28
707-35-52950
RING
29
707-44-18180
RING,PISTON (KIT)
29
707-44-18080
RING,PISTON (KIT)
30
01252-31485
BOLT
31
21N-62-13251
TUBE,L.H.
31
21N-62-13261
TUBE,R.H.
32
21N-62-13241
TUBE
33
707-88-96050
BAND
34
01010-51240
BOLT
35
01643-31232
WASHER
36
07282-04311
CLAMP
37
21N-62-13271
BRACKET
38
01010-51020
BOLT
39
01643-31032
WASHER
40
07283-23442
CLIP
41
01599-01011
NUT
42
01643-31032
WASHER
43
01010-51245
BOLT
44
01643-31232
WASHER
45
07000-13038
O-RING (KIT)
46
07000-13048
O-RING (KIT)
47
07378-11410
HEAD
48
07371-51470
FLANGE
49
01010-51455
BOLT
50
01643-31455
WASHER
51
07000-13038
O-RING (KIT)
52
07378-11210
HEAD
53
07371-51260
FLANGE
54
01010-51245
BOLT
55
01643-31232
WASHER
56
01010-51450
BOLT
57
01643-31455
WASHER
58
07000-13048
O-RING (KIT)
59
07043-00108
PLUG
|$76
707-99-69620
SERVICE KIT
Выбрано товаров: 75
