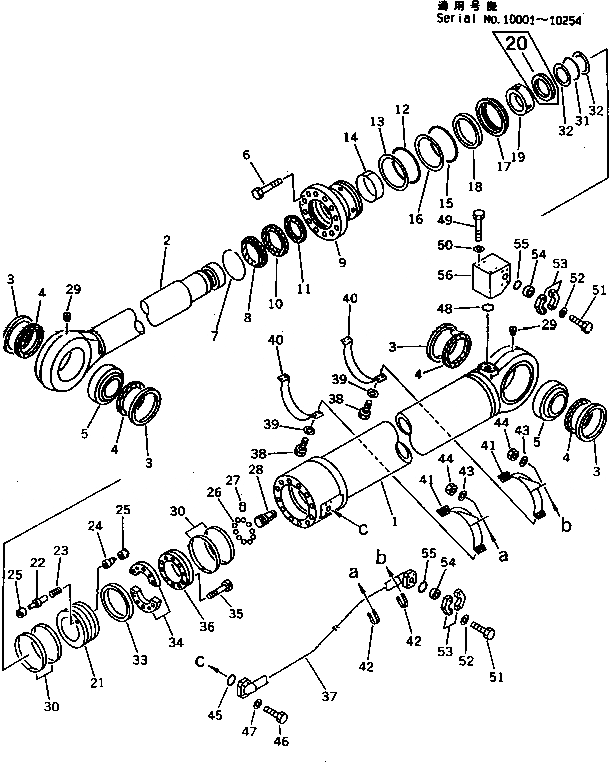

Запчасти Komatsu PC1000LC-1 ЦИЛИНДР РУКОЯТИ РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)
№
Артикул
Название
Примечание
Количество
G-1
21N-63-X2031
CYLINDER GROUP
G-1
21N-63-X2030
CYLINDER GROUP
|$3
21N-63-02031
CYLINDER ASS'Y
|$4
21N-63-02030
CYLINDER ASS'Y
1
21N-63-62140
CYLINDER
2
21N-63-62120
ROD
3
707-46-16040
BUSHING
4
707-77-16010
SEAL,DUST (KIT)
5
707-46-16030
BUSHING
6
01011-83310
BOLT
7
07179-15190
RING,SNAP
7
707-75-17012
RING,SNAP
8
707-56-17510
SEAL,DUST (KIT)
8
707-56-17580
SEAL,DUST (KIT)
9
707-28-25510
HEAD,CYLINDER
10
707-51-17130
PACKING,ROD (KIT)
11
707-51-17630
RING,BUFFER (KIT)
12
07000-15250
O-RING (KIT)
13
707-35-92600
RING,BACK-UP (KIT)
14
707-52-11710
BUSHING
15
07000-15250
O-RING (KIT)
16
07001-05250
RING,BACK-UP (KIT)
17
707-71-31850
COLLAR
18
707-71-11850
RING
19
707-71-51852
PLUNGER
19
707-71-51851
PLUNGER
20
707-40-25910
RETAINER
20
707-91-02521
PISTON SUB ASS'Y
|$29
707-91-02520
PISTON SUB ASS'Y
21
PISTON
21
PISTON
22
VALVE,PISTON
23
SPRING
24
VALVE,PISTON
25
SEAT,SEAT
26
04260-01270
BALL
27
707-71-91390
PIN
28
707-71-50400
PLUNGER
29
07043-00108
PLUG
30
707-39-25820
RING,WEAR (KIT)
31
07000-15145
O-RING (KIT)
32
707-35-91550
RING,BACK-UP (KIT)
33
707-44-25180
RING,PISTON (KIT)
33
707-44-25080
RING,PISTON (KIT)
34
707-40-25970
SPACER
35
01253-31810
BOLT
36
707-37-25020
PISTON
37
21N-62-18350
TUBE
38
01010-51240
BOLT
39
01643-31232
WASHER
40
21N-62-18430
BAND
41
21N-62-18410
BRACKET
42
07283-24346
CLIP
43
01643-31032
WASHER
44
01599-01011
NUT
45
07000-13048
O-RING (KIT)
46
01010-51450
BOLT
47
01643-31445
WASHER
48
07000-12060
O-RING (KIT)
49
01011-51890
BOLT
50
01643-31845
WASHER
51
01010-51455
BOLT
52
01643-31445
WASHER
53
07371-51470
FLANGE
54
07378-11410
HEAD
55
07000-13048
O-RING (KIT)
56
21N-62-18450
BLOCK
|$69
707-99-89200
SERVICE KIT
Выбрано товаров: 68
