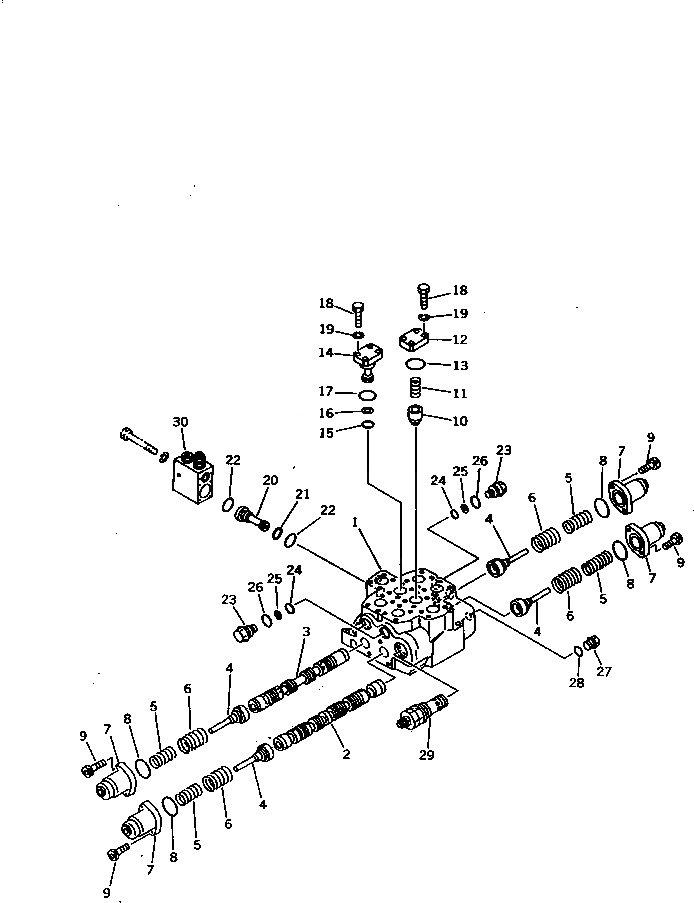

Запчасти Komatsu PC1000LC-1 ПОВОРОТН. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-12-12302

VALVE ASS'Y

|$1

709-12-12301

VALVE ASS'Y

1

BODY,VALVE

2

SPOOL

3

SPOOL

4

709-14-11530

RETAINER

5

709-14-11560

SPRING,INNER

6

709-14-11550

SPRING,OUTER

7

709-14-11520

CASE

8

07000-02065

O-RING

9

01252-31035

BOLT

10

709-12-11411

VALVE,CHECK

11

709-12-11430

SPRING

12

709-12-12440

PLATE

13

07000-13048

O-RING

14

709-12-12410

PLATE

15

700-93-11320

O-RING

16

700-93-11330

RING,BACK-UP

17

07000-13048

O-RING

18

01010-51250

BOLT

19

01602-21236

WASHER,SPRING

20

709-12-12710

FLANGE

21

07000-02060

O-RING

22

07000-02055

O-RING

23

700-94-11260

PLUG

24

07000-12018

O-RING

25

07001-02018

RING,BACK-UP

26

07002-03634

O-RING

27

700-22-11370

PLUG

28

07002-02434

O-RING

29

709-10-52102

VALVE ASS'Y,RELIEF

29

709-10-52101

VALVE ASS'Y,RELIEF

30

709-10-91402

JET SENSOR ASS'Y

30

709-10-91401

JET SENSOR ASS'Y
