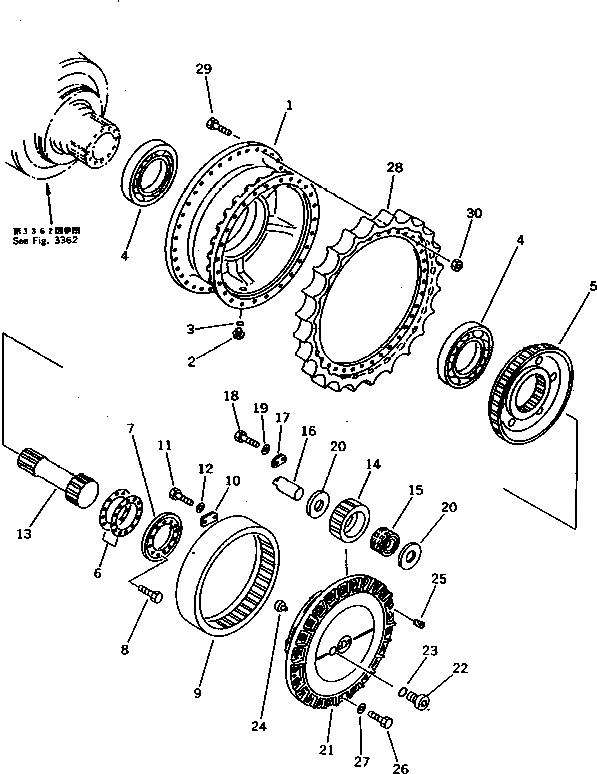

Запчасти Komatsu PC1000LC-1 КОРПУС КОНЕЧН. ПЕРЕДАЧИ И ЗВЕЗДОЧКА (/) ХОДОВАЯ

|$0

21N-27-00042

FINAL DRIVE ASS'Y,L.H.

|$1

21N-27-00041

FINAL DRIVE ASS'Y,L.H.

|$2

21N-27-00040

FINAL DRIVE ASS'Y,L.H.

|$3

21N-27-00052

FINAL DRIVE ASS'Y,R.H.

|$4

21N-27-00051

FINAL DRIVE ASS'Y,R.H.

|$5

21N-27-00050

FINAL DRIVE ASS'Y,R.H.

1

21N-27-11152

CASE

2

07044-13620

PLUG

3

07002-03634

O-RING

4

21N-27-11410

BEARING,ROLLER

5

21N-27-11320

HOUSING

6

21N-27-00030

SHIM KIT

6

SHIM, 0.15MM

6

SHIM, 0.2MM

6

SHIM, 0.5MM

6

SHIM, 1.0MM

7

21N-27-11331

RETAINER

8

01010-52060

BOLT

9

21N-27-11310

GEAR

10

209-27-21270

LOCK

11

01010-51230

BOLT

12

01643-31232

WASHER

13

21N-27-11281

SHAFT

14

21N-27-11290

GEAR

15

21N-27-11390

BEARING,ROLLER

16

21N-27-11441

PIN

17

209-27-51450

LOCK

18

01010-51230

BOLT

19

01643-31232

WASHER

20

21N-27-11550

WASHER,THRUST

21

21N-27-11160

CARRIER

22

07040-13618

PLUG

23

07002-03634

O-RING

24

205-27-71360

BUTTON

25

07049-02430

PLUG

26

01010-52470

BOLT

27

01643-32460

WASHER

28

21N-27-11172

SPROCKET

28

21N-27-11171

SPROCKET

29

09203-12495

BOLT

30

01803-12430

NUT
