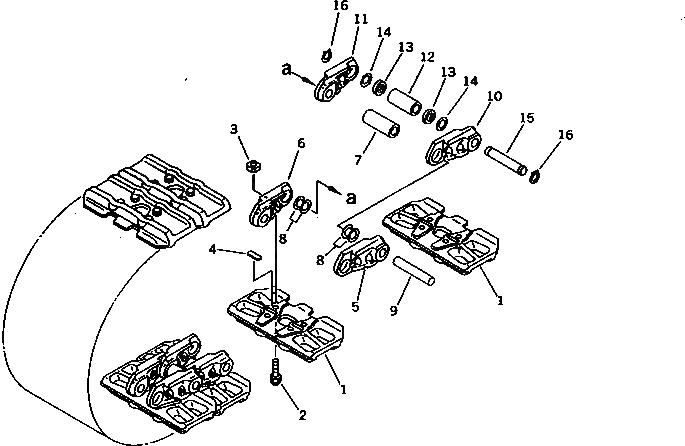

Запчасти Komatsu PC1000-1 ГУСЕНИЦЫ (ДВОЙН. ГРУНТОЗАЦЕП)(№-8) ХОДОВАЯ
№
Артикул
Название
Примечание
Количество
|1
21N-32-01001
TRACK SHOE ASS'Y
|1
21N-32-01000
TRACK SHOE ASS'Y
1
21N-32-11110
SHOE,TRACK
2
21N-32-11210
BOLT¤ SHOE (KIT)
3
195-32-41220
NUT¤ SHOE (KIT)
4
04000-01880
KEY
|5
21N-32-00010
TRACK LINK ASS'Y
5
21N-32-11120
LINK,TRACK¤ L.H.
6
21N-32-11130
LINK,TRACK¤ R.H.
7
195-32-45140
BUSHING,REGULAR
8
195-32-45160
WASHER
9
195-32-45150
PIN,REGULAR
10
21N-32-11220
LINK,MASTER¤ L.H.
11
21N-32-11230
LINK,MASTER¤ R.H.
12
21N-32-11170
BUSHING,MASTER
13
21N-32-11251
SEAL,DUST
14
195-32-45160
WASHER
15
21N-32-11191
PIN,MASTER
|15
21N-32-11190
PIN,MASTER
16
21N-32-11240
RING,SNAP
|1
21N-32-05000
SHOE BOLT AND NUT K.
1
21N-32-11210
BOLT¤ SHOE
2
195-32-41220
NUT¤ SHOE
|1
21N-32-01021
TRACK SHOE ASS'Y
|1
21N-32-01020
TRACK SHOE ASS'Y
1
21N-32-11310
SHOE,TRACK
2
21N-32-11320
BOLT¤ SHOE (KIT)
3
195-32-41220
NUT¤ SHOE (KIT)
4
04000-01880
KEY
|5
21N-32-00010
TRACK LINK ASS'Y
|1
21N-32-01031
TRACK SHOE ASS'Y
|1
21N-32-01030
TRACK SHOE ASS'Y
1
21N-32-11410
SHOE,TRACK
2
21N-32-11320
BOLT¤ SHOE (KIT)
3
195-32-41220
NUT¤ SHOE (KIT)
4
04000-01880
KEY
|5
21N-32-00010
TRACK LINK ASS'Y
|1
21N-32-05010
SHOE BOLT AND NUT K.
1
21N-32-11320
BOLT¤ SHOE
2
195-32-41220
NUT¤ SHOE
7
195-98-09670
BUSHING,REGULAR
9
195-98-09650
PIN,REGULAR
12
21N-98-09130
BUSHING,MASTER
15
21N-98-09170
PIN,MASTER
7
195-98-09680
BUSHING,REGULAR
9
195-98-09660
PIN,REGULAR
12
21N-98-09140
BUSHING,MASTER
15
21N-98-09180
PIN,MASTER
Выбрано товаров: 48
