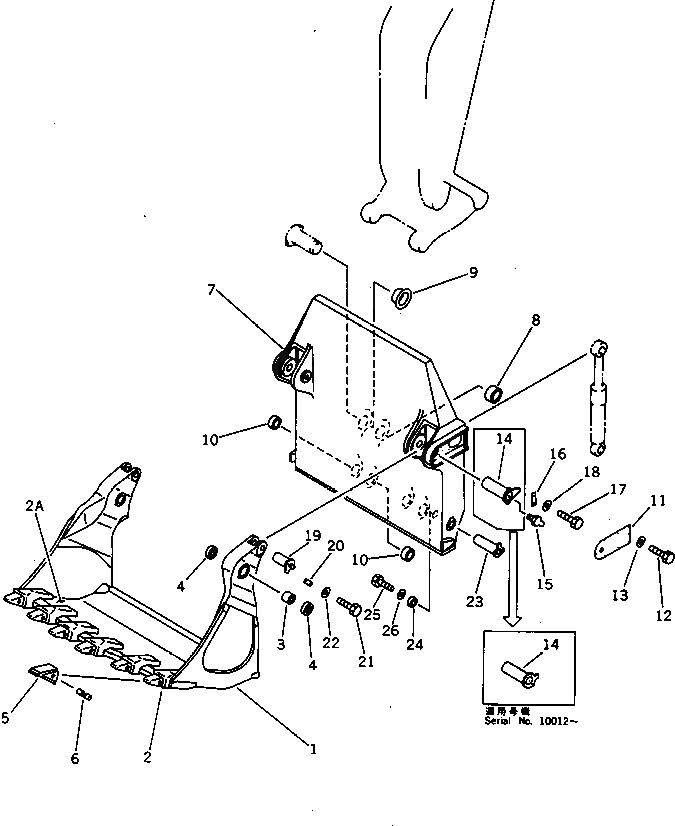

Запчасти Komatsu PC1000-1 КОВШ¤ 7.M (ГОРИЗОНТАЛЬН. ПАЛЕЦ) (ДЛЯ НИЖН. РАЗГРУЗКА) РАБОЧЕЕ ОБОРУДОВАНИЕ (ПОГРУЗ.)

G-1

21N-961-X330

BUCKET GROUP,FRONT

1

21N-961-1111

BUCKET

|1

21N-961-1110

BUCKET

2

21N-72-14281

ADAPTER (WELDED)

2A

21N-72-14130

PLATE (WELDED)

3

21N-72-14240

BUSHING

4

209-72-12211

SEAL

G-2

21N-72-X3400

TOOTH GROUP

5

21N-72-14290

POINT

6

21N-72-14330

PIN ASS'Y

G-3

21N-72-X3100

BUCKET GROUP,REAR

7

21N-72-14112

BUCKET

|7

21N-72-14111

BUCKET,REAR

8

21N-72-14180

BUSHING

9

21N-72-14190

BUSHING

10

21N-72-14220

BUSHING

11

21N-72-14250

COVER

12

01010-51235

BOLT

13

01643-31232

WASHER

G-4

21N-72-X3200

PIN GROUP

14

21N-72-14231

PIN

|14

21N-72-14230

PIN

15

07020-00000

FITTING

16

21N-70-11230

PLATE

|16

207-70-11230

PLATE

17

01010-51640

BOLT

18

01643-31645

WASHER

19

209-72-54260

PIN

20

209-72-54390

PLATE

21

01010-51250

BOLT

22

01643-31232

WASHER

23

21N-72-14260

PIN

24

209-72-54250

HOLDER

25

01010-51235

BOLT

26

01643-31232

WASHER
