Запчасти Komatsu PC1000-1 НИЖН. ЦИЛИНДР РАБОЧЕЕ ОБОРУДОВАНИЕ (ПОГРУЗ.)

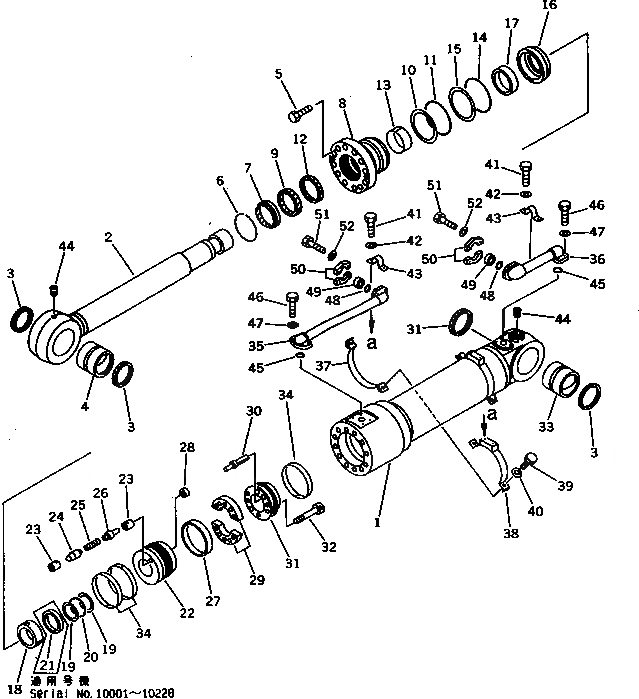

Схема запчастей Komatsu PC1000-1 - НИЖН. ЦИЛИНДР РАБОЧЕЕ ОБОРУДОВАНИЕ (ПОГРУЗ.)

Артикул

Название

Примечание

Количество

G-1

21N-63-X3072

CYLINDER GROUP,L.H.

|G

21N-63-X3071

CYLINDER GROUP,L.H.

G-2

21N-63-X3082

CYLINDER GROUP,R.H.

|G

21N-63-X3081

CYLINDER GROUP,R.H.

|1

21N-63-03072

CYLINDER ASS'Y

|1

21N-63-03071

CYLINDER ASS'Y

1

21N-63-96141

CYLINDER

2

21N-63-96121

ROD

3

07145-00090

SEAL,DUST (KIT)

4

707-76-90040

BUSHING

5

01010-51860

BOLT

6

07179-13104

RING,SNAP

|6

707-75-90012

RING,SNAP

7

195-63-94170

SEAL,DUST (KIT)

8

707-28-14511

HEAD,CYLINDER

9

707-51-90130

PACKING,ROD (KIT)

10

707-35-91440

RING,BACK-UP (KIT)

11

07000-15135

O-RING (KIT)

12

707-51-90630

RING,BUFFER (KIT)

13

07177-09040

BUSHING

14

07000-15135

O-RING (KIT)

15

07001-05135

RING,BACK-UP (KIT)

16

707-71-30970

COLLAR

17

707-71-10950

RING

18

707-71-50531

PLUNGER

|18

707-71-50530

PLUNGER

19

707-35-52910

RING,BACK-UP (KIT)

20

07000-12070

O-RING (KIT)

21

707-40-14910

RETAINER

|22

707-91-01420

PISTON SUB ASS'Y

|22

707-91-01410

PISTON SUB ASS'Y

22

PISTON

22

PISTON

23

SEAT

24

VALVE,PISTON

25

SPRING

26

VALVE,PISTON

27

707-44-14180

RING,PISTON (KIT)

|27

707-44-14080

RING,PISTON (KIT)

28

707-83-11070

COLLAR

29

707-40-14970

SPACER

30

707-83-11040

ROD,VALVE

31

707-37-14030

PISTON

32

01252-31055

BOLT

33

207-63-76170

BUSHING

34

707-39-14820

RING,WEAR (KIT)

35

21N-63-96170

TUBE,L.H.

|35

21N-63-96270

TUBE,R.H.

36

21N-62-13750

TUBE,L.H.

|36

21N-62-13740

TUBE,R.H.

37

209-62-53660

BAND

38

21N-62-13640

BRACKET

39

01010-51035

BOLT

40

01643-31032

WASHER

41

01010-51020

BOLT

42

01643-31032

WASHER

43

07282-03411

CLAMP

44

07043-00108

PLUG

45

07000-13035

O-RING (KIT)

46

01010-51060

BOLT

47

01643-31032

WASHER

48

07000-13032

O-RING (KIT)

49

07378-11000

HEAD

50

07371-31049

FLANGE

51

07372-21035

BOLT

52

01643-51032

WASHER

|53

707-99-56310

SERVICE KIT

Выбрано товаров: 67
