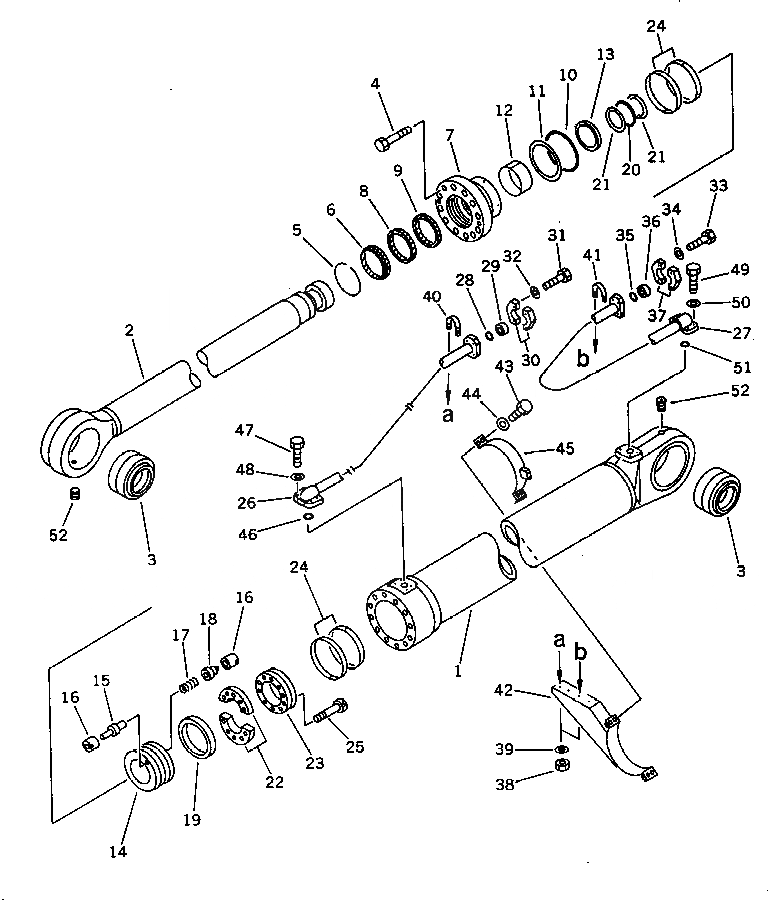

Запчасти Komatsu PC1000-1 ЦИЛИНДР КОВША РАБОЧЕЕ ОБОРУДОВАНИЕ (ПОГРУЗ.)
№
Артикул
Название
Примечание
Количество
G-1
21N-63-X3051
CYLINDER GROUP,L.H.
|G
21N-63-X3050
CYLINDER GROUP,L.H.
G-2
21N-63-X3061
CYLINDER GROUP,R.H.
|G
21N-63-X3060
CYLINDER GROUP,R.H.
|1
21N-63-03051
CYLINDER ASS'Y
|1
21N-63-03050
CYLINDER ASS'Y
1
21N-63-76140
CYLINDER
2
21N-63-76120
ROD
3
707-46-13010
BUSHING
4
01010-52790
BOLT
5
07179-14160
RING,SNAP
|5
707-75-14012
RING,SNAP
6
198-63-93170
SEAL,DUST (KIT)
7
707-27-20510
HEAD,CYLINDER
8
707-51-14130
PACKING,ROD (KIT)
9
707-51-14630
RING,BUFFER (KIT)
10
07000-15195
O-RING (KIT)
11
07001-05195
RING,BACK-UP (KIT)
12
707-52-91150
BUSHING
|12
707-52-11410
BUSHING
13
707-40-20910
RETAINER
|14
707-91-02071
PISTON ASS'Y
|14
707-91-02070
PISTON ASS'Y
14
PISTON
|14
PISTON
15
VALVE,PISTON
16
SEAT
17
SPRING
18
VALVE,PISTON
19
707-44-20180
RING,PISTON (KIT)
|19
707-44-20080
RING,PISTON (KIT)
20
07000-12115
O-RING (KIT)
21
707-35-52860
RING,BACK-UP (KIT)
22
707-40-20970
SPACER
23
707-37-20020
PISTON
24
707-39-20820
RING,WEAR (KIT)
25
01252-31490
BOLT
26
21N-62-13440
TUBE,L.H.
|26
21N-62-13450
TUBE,R.H.
27
21N-62-13420
TUBE,L.H.
|27
21N-62-13430
TUBE,R.H.
28
07000-13038
O-RING (KIT)
29
07378-11210
HEAD
30
07371-51260
FLANGE
31
01010-51245
BOLT
32
01643-31232
WASHER
33
01010-51455
BOLT
34
01643-31445
WASHER
35
07000-13048
O-RING (KIT)
36
07378-11410
HEAD
37
07371-51470
FLANGE
38
01599-01011
NUT
39
01643-31032
WASHER
40
07283-23442
CLIP
41
07283-24346
CLIP
42
21N-62-13461
BRACKET
43
01010-51240
BOLT
44
01643-31232
WASHER
45
21N-72-12190
BRACKET
46
07000-13038
O-RING (KIT)
47
01010-51245
BOLT
48
01643-31232
WASHER
49
01010-51450
BOLT
50
01643-31445
WASHER
51
07000-13048
O-RING (KIT)
52
07043-00108
PLUG
|53
707-99-77250
SERVICE KIT
Выбрано товаров: 67
